913.0200.00 IG65
Insert
Material number 913020000IG65

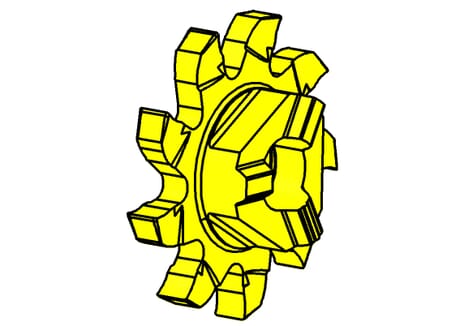

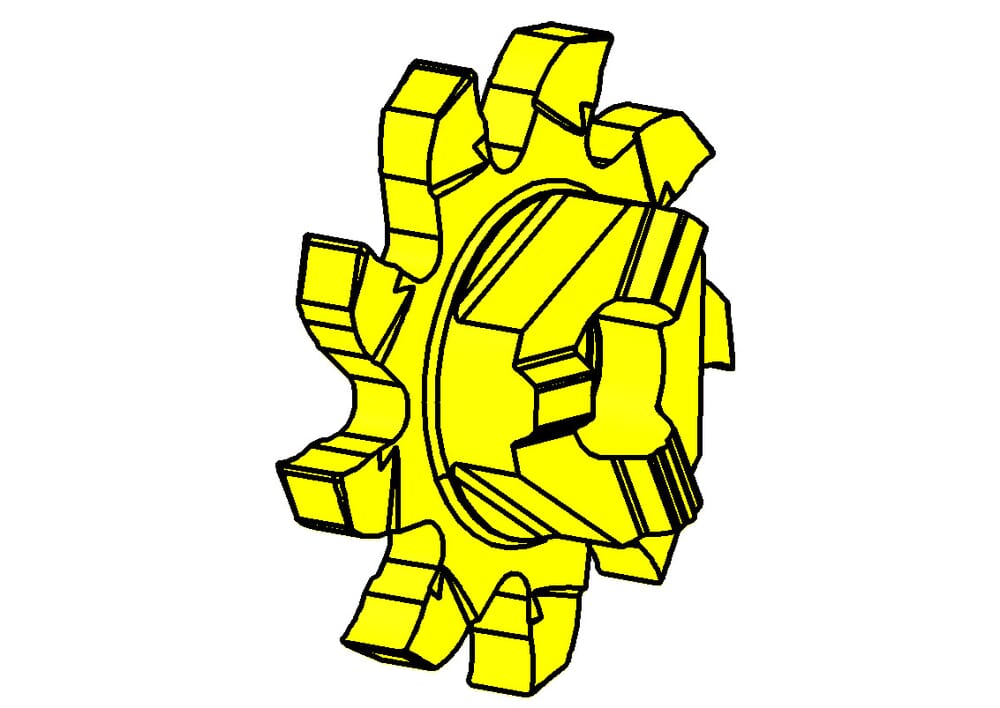

HORN Insert 913.0200.00 IG65 for Milling
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
9
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
2
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 913_0200_00_IG65-DXF.DXF | Download |
| 913_0200_00_IG65-STP.STP | Download |
| 913_0200_00_IG65-DIN.XML | Download |
| Download all files | |
