LH100.1616.02
Toolholders
Material number LH100161602

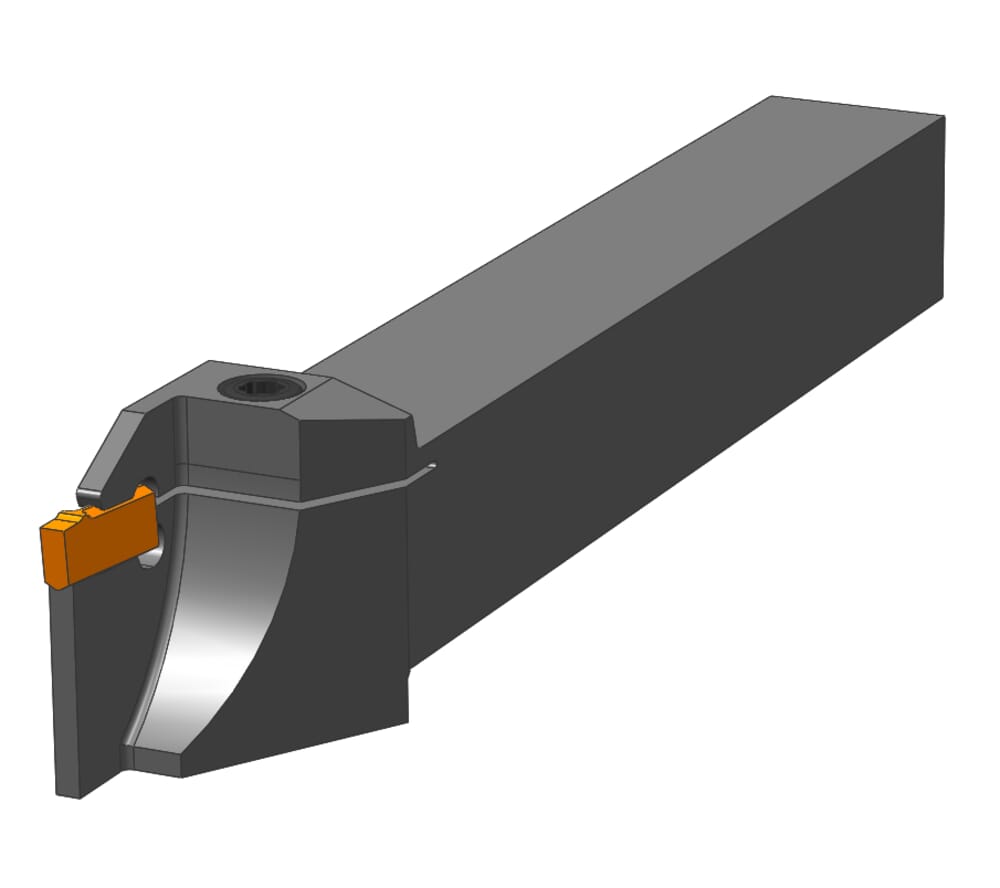

HORN Toolholders LH100.1616.02 for Turning

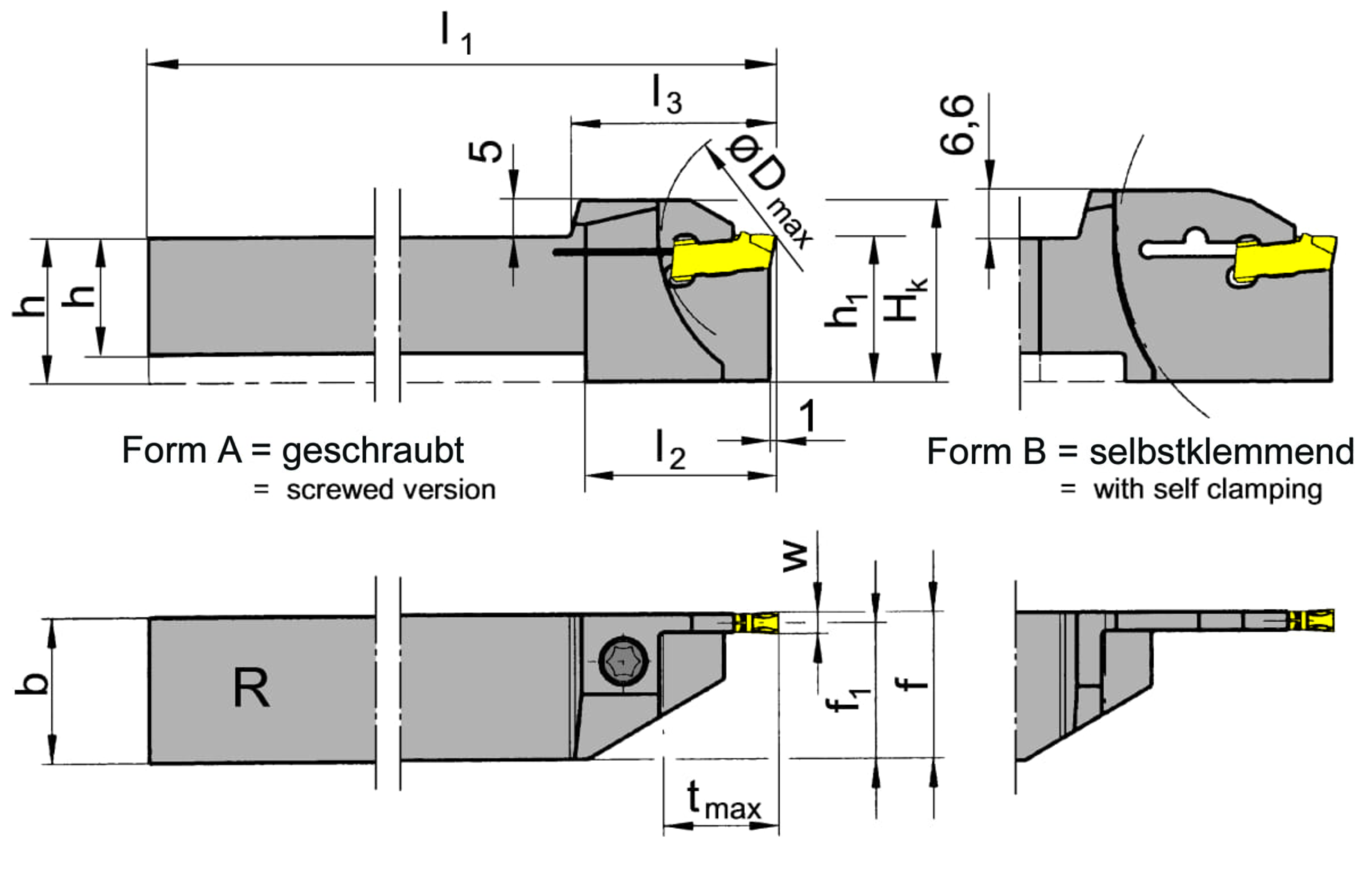

Maximum workpiece diameter (Dmax)
42
mm
Form (Form)
A
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
100028
DIN_CCTWS
HORN-100020058N
ISO_CCTWS
HORN100020058N$$$$$
Head length bottom without insert (l2)
19
mm
Head length top (including cutting edge) (l3)
21
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
20
mm
Maximum insertion depth (tmax)
10.5
mm
Head height (HK)
25
mm
Shank height (h)
16
mm
Size (Größe)
2
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
15.05
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| LH100161602_20210707_123007869.DXF | Download |
| LH100_1616_02_20171121_232220795.STP | Download |
| Download all files | |
