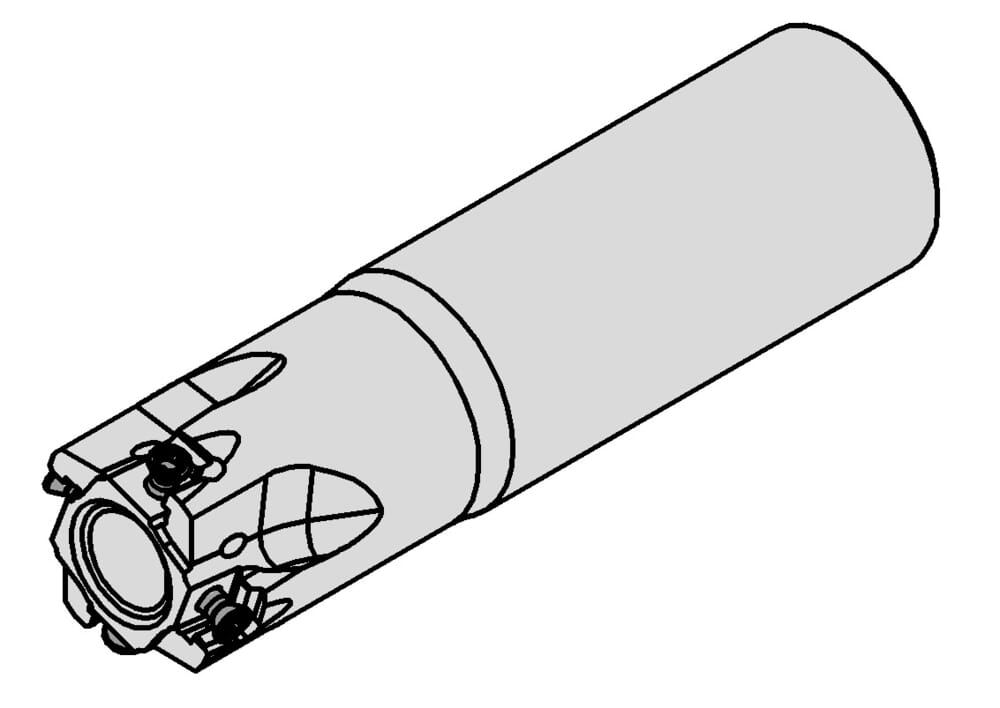

M406.020.D20.4.03B
tangential milling cutters type M406
Material number M406020D20403B
HORN tangential milling cutters type M406 M406.020.D20.4.03B for Milling
Katalog_CCTWS
40600R
Number of revolutions maximum (nmax)
21200
Min-1

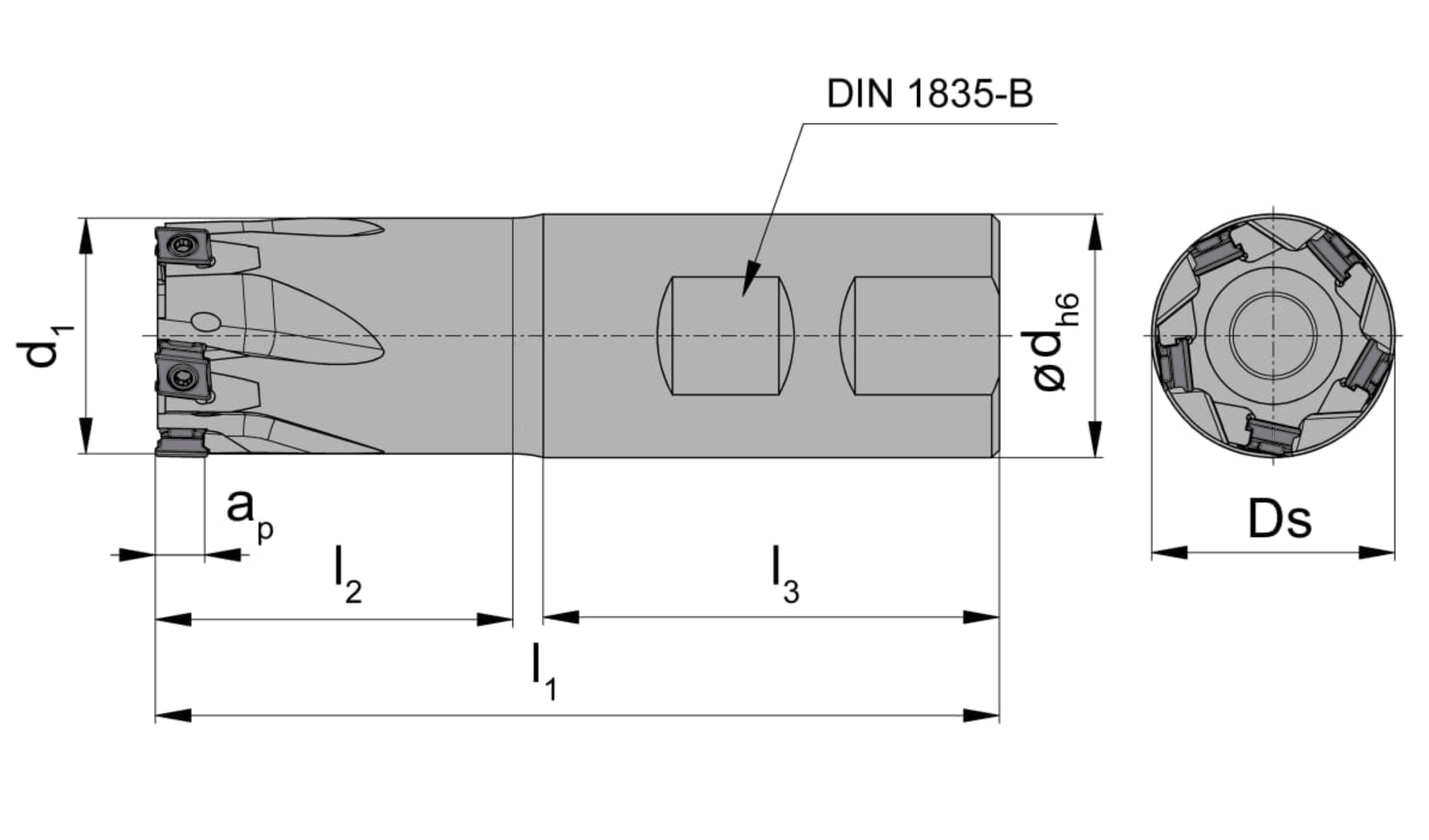

Tension length (l3)
50
mm
Working length, Neck length, Extension length (l2)
33
mm
Total length insert (l1)
85
mm
cone-diameter-met
20
mm
Neck diameter (d1)
19
mm
Cutting depth (ap)
6.3
mm
ISO_CCTMS
ZYL10G2000h$06
DIN_CCTMS
ZYL02001015
DIN_CCTWS
HORN-406003R
ISO_CCTWS
HORN40600$$$3R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| M406020D20403B.DXF | Download |
| M406020D20403B_20240117_091709175.STP | Download |
| Download all files | |
