939.0015.4.30 RC45
Insert
Material number 9390015430RC45

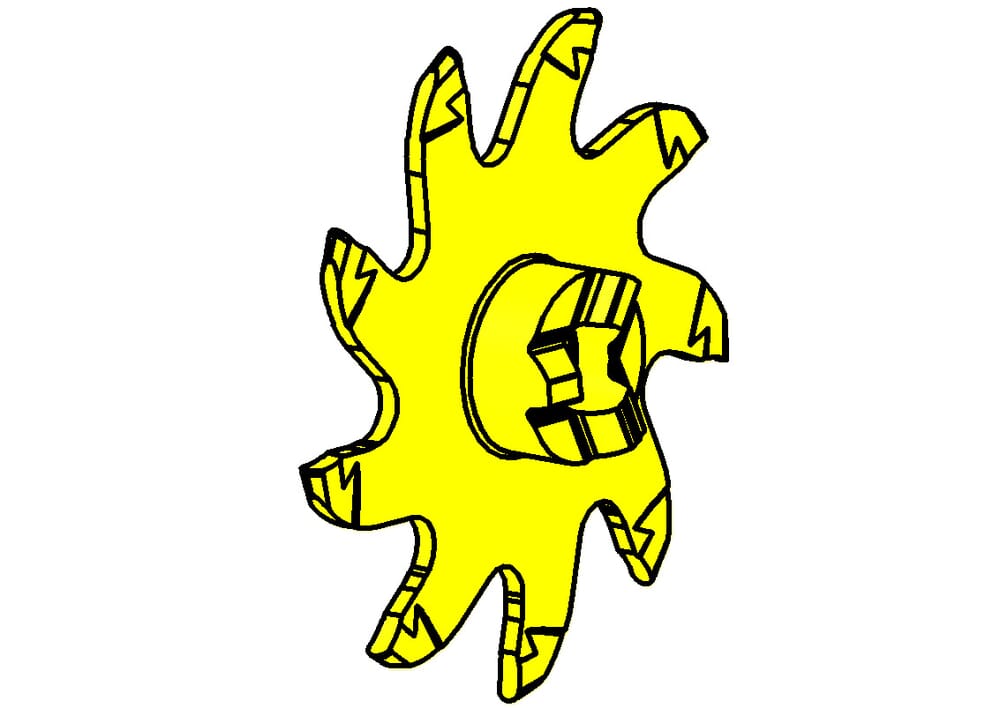

HORN Insert 939.0015.4.30 RC45 for Milling
Cutting diameter (Ds)
40
mm
Number of teeth (Z)
9
St.
ISO_SSC
HORN332110$84R$$$$$
DIN_SSC
HORN33211084R
Katalog_SSC
332110R
Width of groove (w)
3
mm
Maximum milling depth/ depth of groove (tmax)
14
mm
Cutting insert thickness, setting length complete (s)
5.8
mm
Radius, full-radius (r)
1.5
mm
| Downloads | |
|---|---|
| 939_0015_4_30_RC45-DXF.DXF | Download |
| 939_0015_4_30_RC45-STP.STP | Download |
| 939_0015_4_30_RC45-DIN.XML | Download |
| Download all files | |
