050.1827.0009
Toolholders
Material number 05018270009

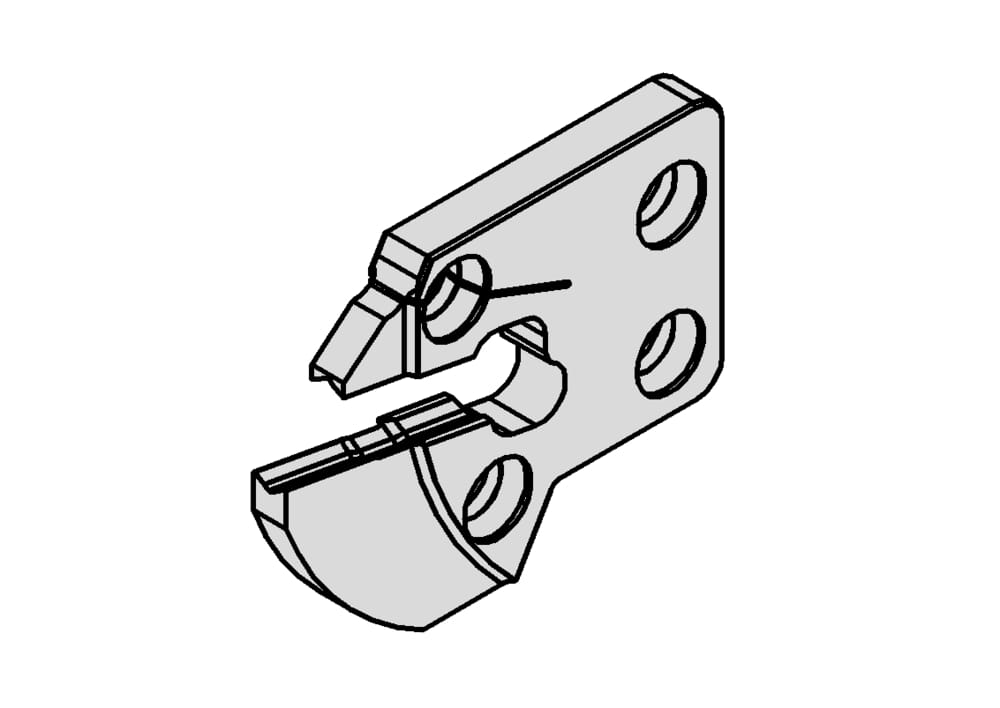

HORN Toolholders 050.1827.0009 for Turning
Clamping range minimum (Spannbereich)
4
Plating seat size (Größe)
4
Katalog_CCTMS
500000
ISO_CCTMS
HORN50000083$$
DIN_CCTMS
HORN-50000083
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Maximum drilling diameter (Dmin2)
80
Clamping range maximum (Spannbereich)
5.09
Peak height (h)
18.5
Minimum drilling diameter (Dmin)
62
Maximum depth of groove (tmax)
10
Maximum insertion depth (tmax)
14
Cassette thickness (b)
4.9
Total length (including cutting insert) (l1)
47
| Downloads | |
|---|---|
| 050_1827_0009.STP | Download |
| Download all files | |
