back to products
217002040_PICTO.TIF
217002040_PICTO.TIF 217001530.TIF

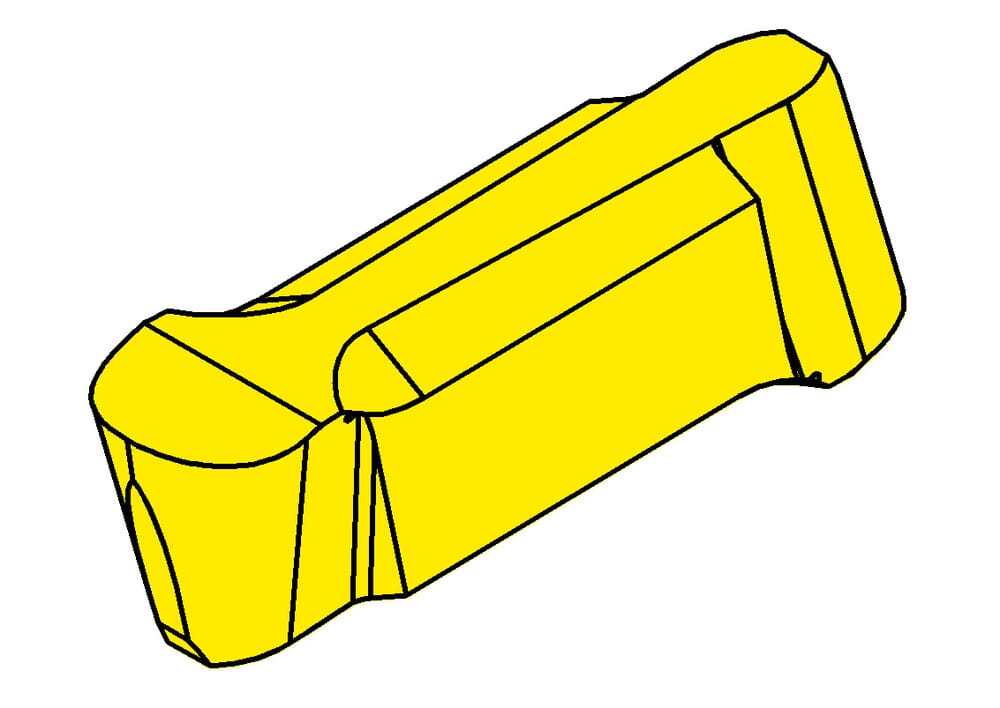

217.0015.30 P20

Inserts

INNEN_ECKENFREISTECHEN.EPS

Material number 217001530P20

HORN Inserts 217.0015.30 P20 for Turning

Technical instructions

Cancellation (a1)
0.1 mm
Minimum drilling diameter (Dmin)
20 mm
Full radius (r1)
1.5 mm
ISO_SSC
HORN217030008N$$$$$
Katalog_SSC
21703
Plating seat size (Größe)
3
Width of groove (w)
3 mm
Size of groove (t1)
1 mm
Downloads
217001530_20230112_152701657.STP Download
217001530_20210629_100225096.DXF Download
Download all files
