217.0020.40 TN35
Inserts
Material number 217002040TN35

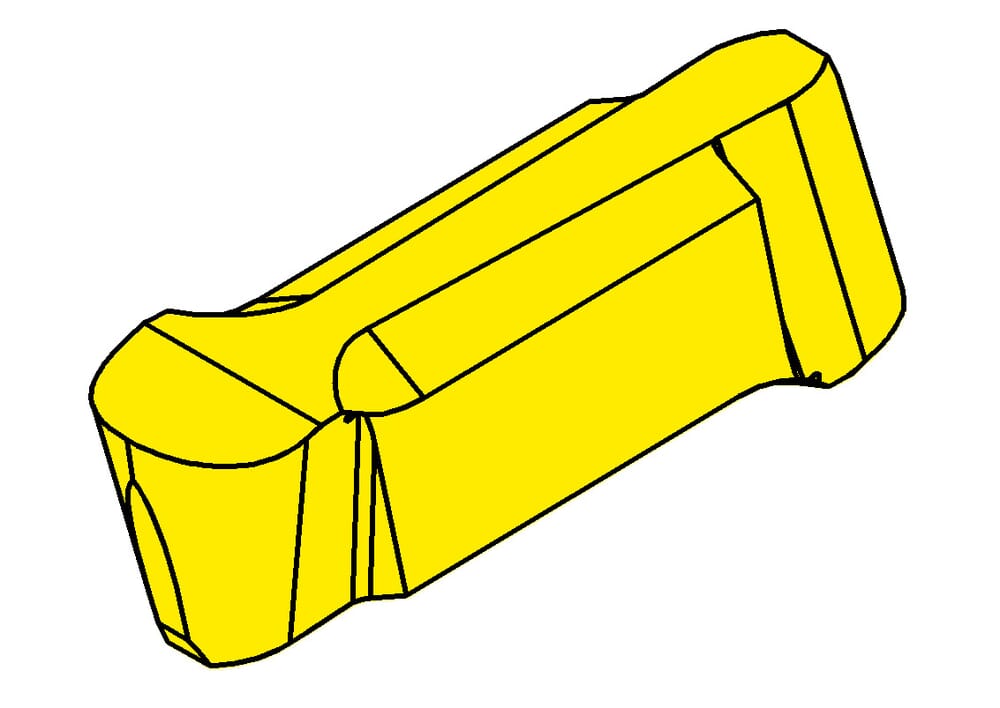

HORN Inserts 217.0020.40 TN35 for Turning
Cancellation (a1)
0.1 mm
Minimum drilling diameter (Dmin)
20 mm
Full radius (r1)
2 mm
ISO_SSC
HORN217040008N$$$$$
Katalog_SSC
21704
Plating seat size (Größe)
4
Width of groove (w)
4 mm
Size of groove (t1)
1.25 mm
| Downloads | |
|---|---|
| 217_0020_40_TN35-ISO.XML | Download |
| 217_0020_40_TN35-DIN.XML | Download |
| 217_0020_40_TN35-DXF.DXF | Download |
| 217_0020_40_TN35-STP.STP | Download |
| Download all files | |
