217.1306.25 TN32
Inserts
Material number 217130625TN32

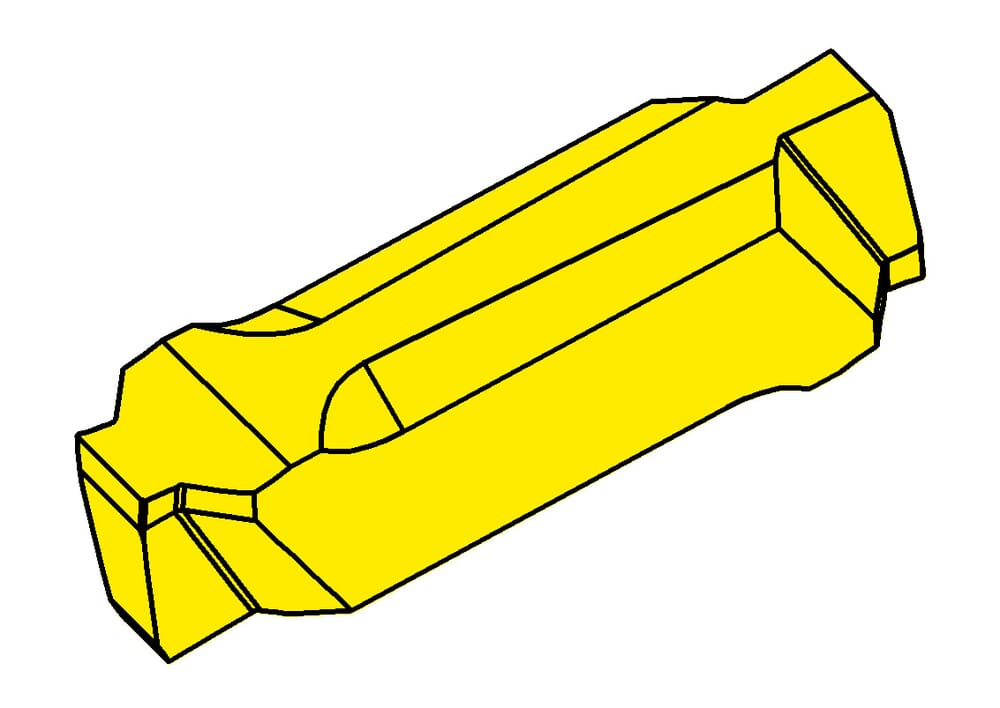

HORN Inserts 217.1306.25 TN32 for Turning
Cancellation (a1)
0.54 mm
Maximum depth of groove (tmax)
0.55 mm
Groove depth without groove outer edge chamfer (t1)
0.45 mm
ISO_SSC
HORN217020008N$$$$$
Katalog_SSC
21702
Plating seat size (Größe)
2
Width of groove (w)
1.44 mm
Nominal range (Nw)
1.3 mm
Cutting insert width (s)
2.5 mm
| Downloads | |
|---|---|
| 217130625_20230112_153336596.STP | Download |
| 217130625_20210629_100613882.DXF | Download |
| Download all files | |
