217.1812.33 TN32
Inserts
Material number 217181233TN32

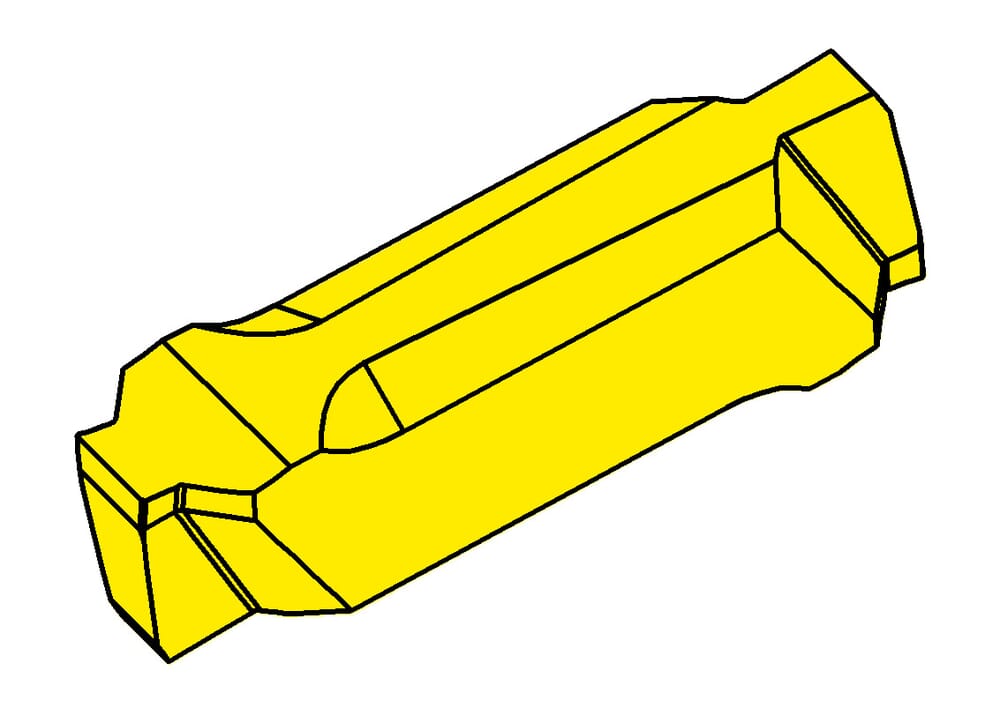

HORN Inserts 217.1812.33 TN32 for Turning
Cutting insert width (s)
3.3
mm
Nominal range (Nw)
1.85
mm
Width of groove (w)
1.99
mm
Plating seat size (Größe)
3
Katalog_SSC
21703
DIN_SSC
HORN-217030008N
ISO_SSC
HORN217030008N$$$$$
Groove depth without groove outer edge chamfer (t1)
1.1
mm
Maximum depth of groove (tmax)
1.25
mm
Cancellation (a1)
0.67
mm
| Downloads | |
|---|---|
| 217181233_20210630_112049614.STP | Download |
| 217181233_20210629_100713884.DXF | Download |
| Download all files | |
