306.0050.10.00 TA45

Insert

Material number 30600501000TA45

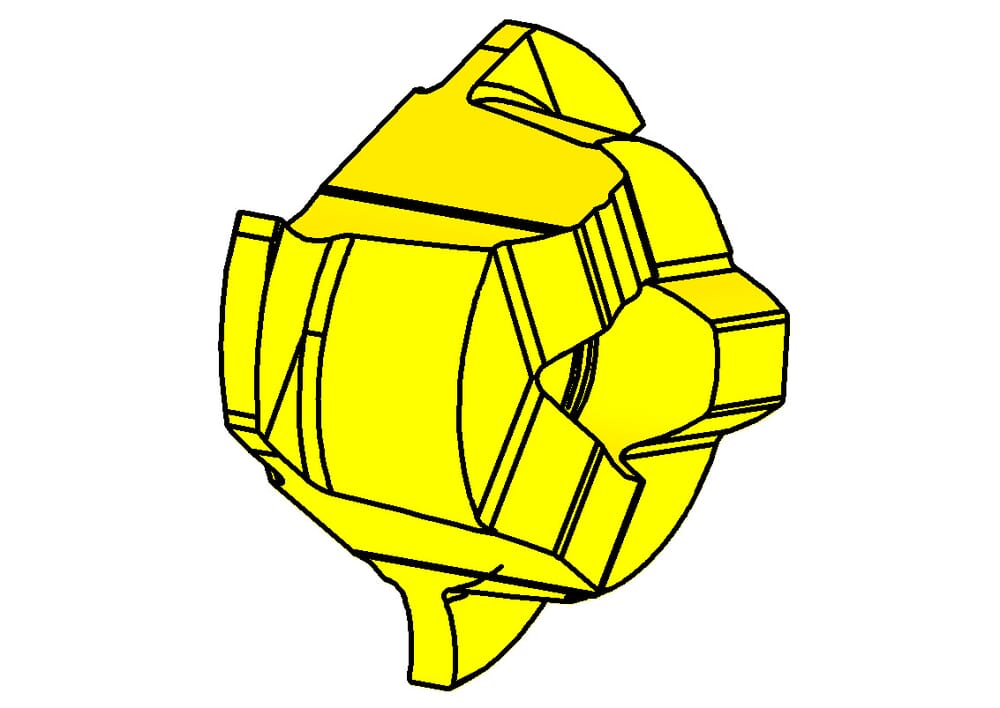

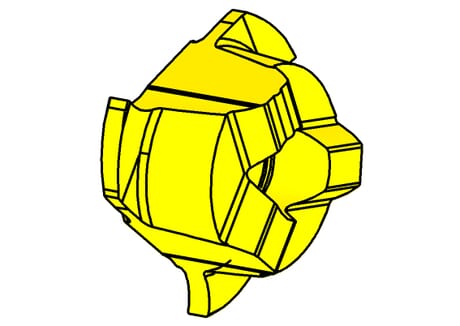

HORN Insert 306.0050.10.00 TA45 for Milling

Cutting diameter (Ds)

9.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

Width of groove (w)

0.57 mm

Maximum milling depth/ depth of groove (tmax)

0.85 mm

Nominal range (Nw)

0.5 mm

Cutting insert thickness, setting length complete (s)

3.4 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

3.2
