306.5519.10.02 AS45
Insert
Material number 30655191002AS45

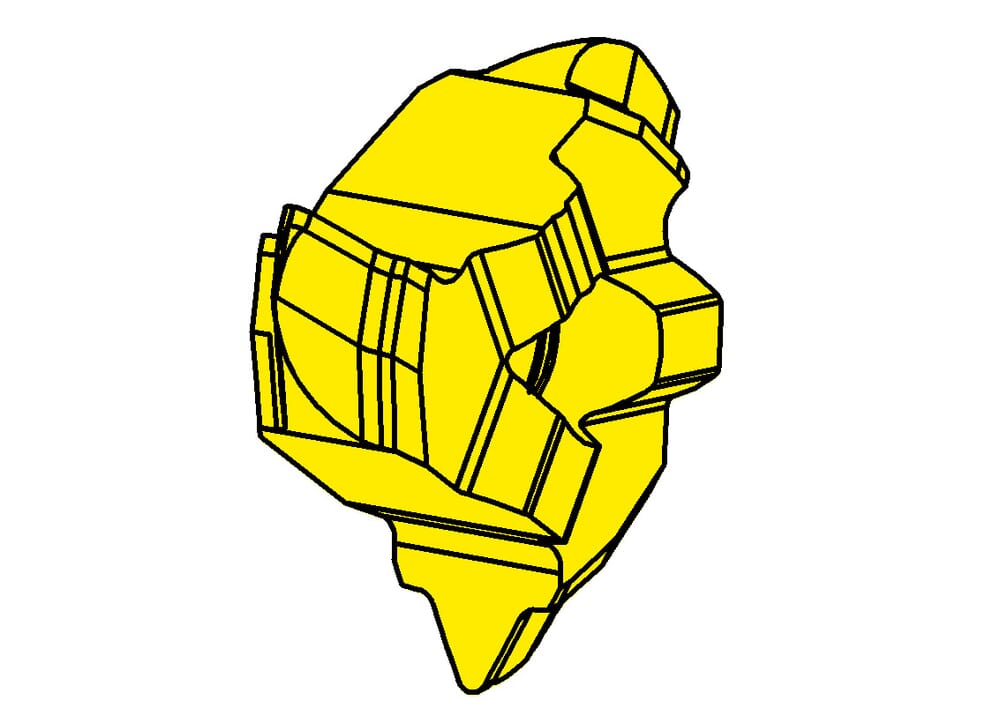

HORN Insert 306.5519.10.02 AS45 for Gewinden
Cutting diameter (Ds)
9.7 mm
Number of teeth (Z)
3 St.
Threads per inch (TPI)
19
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Setting length (E)
2.2 mm
Cutting insert height, Cutting insert thickness (s)
3.4 mm
| Downloads | |
|---|---|
| 306_5519_10_02_AS45-ISO.XML | Download |
| 306_5519_10_02_AS45-DIN.XML | Download |
| 306_5519_10_02_AS45-DXF.DXF | Download |
| 306_5519_10_02_AS45-STP.STP | Download |
| Download all files | |
