308.0015.30 AS45
Insert
Material number 308001530AS45

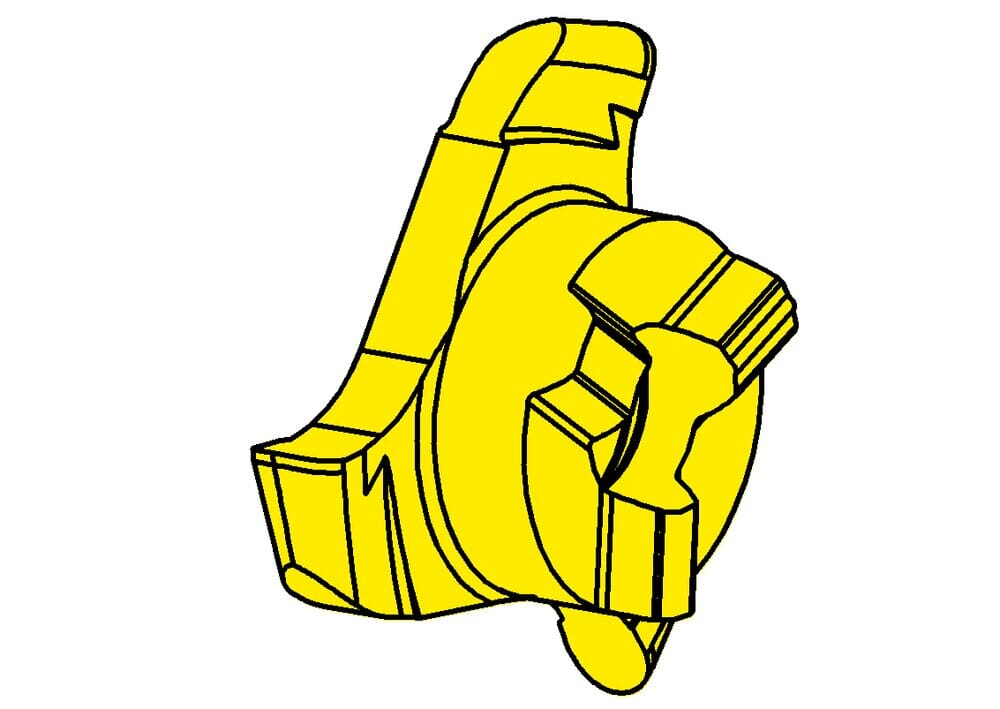

HORN Insert 308.0015.30 AS45 for Milling
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
3
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
4.5
mm
Radius, full-radius (r)
1.5
mm
| Downloads | |
|---|---|
| 308_0015_30_AS45-DIN.XML | Download |
| 308_0015_30_AS45-DXF.DXF | Download |
| 308_0015_30_AS45-STP.STP | Download |
| Download all files | |
