311.0160.40 TI25
Inserts
Material number 311016040TI25

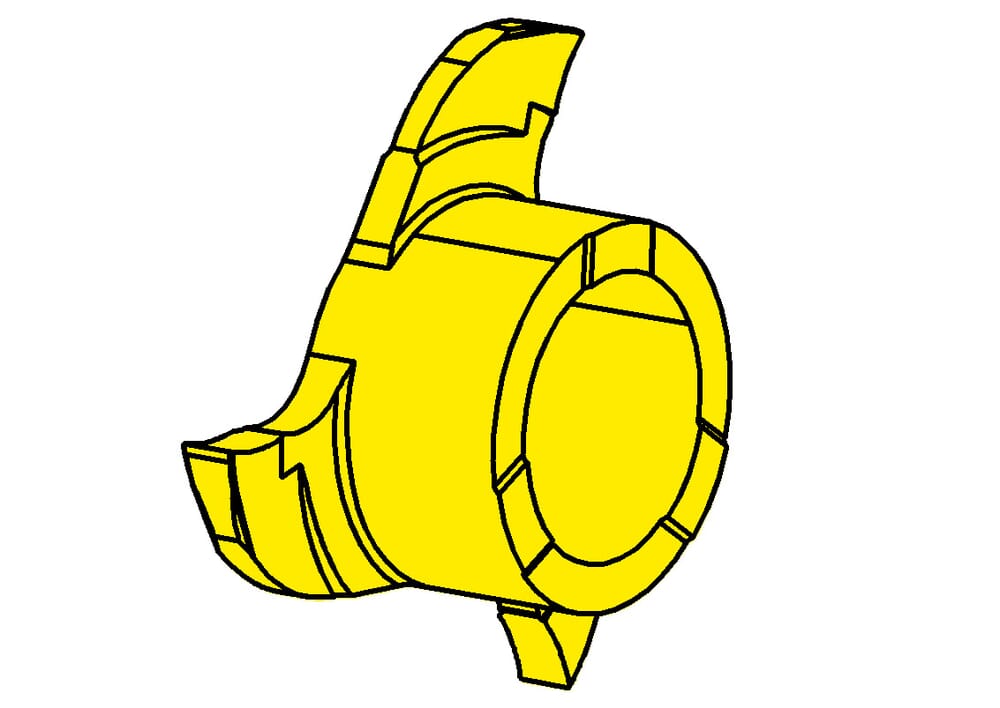

HORN Inserts 311.0160.40 TI25 for Milling
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Width of groove (w)
1.71
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Nominal range (Nw)
1.6
mm
Cutting insert thickness, setting length complete (s)
5.75
mm
| Downloads | |
|---|---|
| 311_0160_40_TI25-ISO.XML | Download |
| 311_0160_40_TI25-DXF.DXF | Download |
| 311_0160_40_TI25-STP.STP | Download |
| Download all files | |
