312.0603.33 EG52
Insert
Material number 312060333EG52

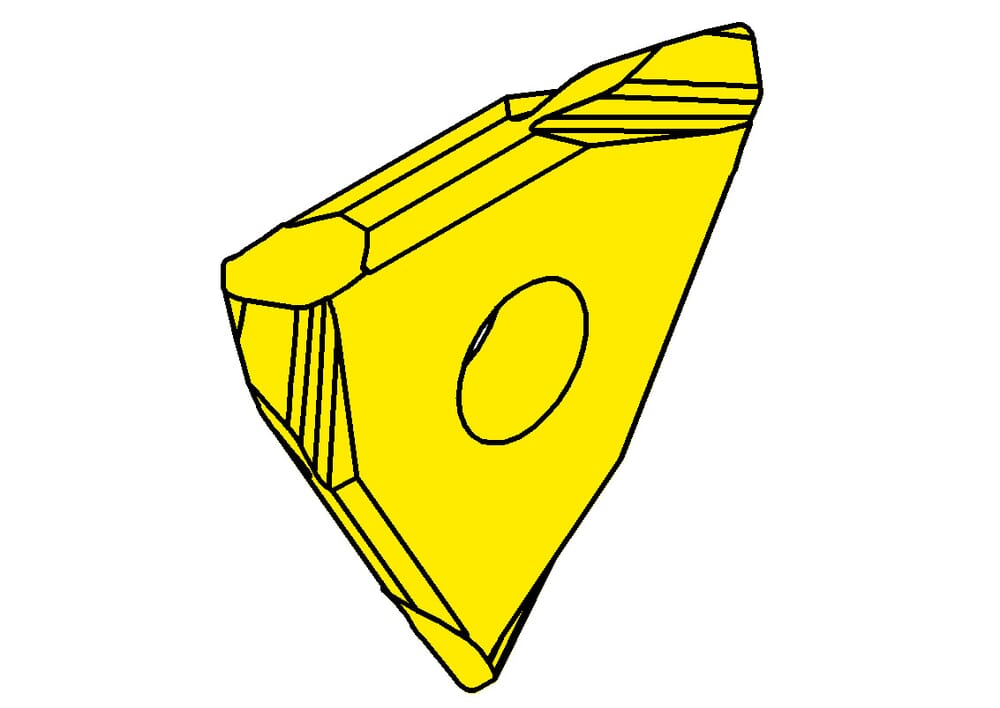

HORN Insert 312.0603.33 EG52 for Turning
Maximum freestanding depth (t1)
0.3 mm
Profile radius (r1)
0.6 mm
Free-throw base width (g/f)
2.3 mm
Smallest workpiece diameter (Dmin)
23 mm
ISO_SSC
HORN-31203$000N$$$$$
Katalog_SSC
31203N
Plating seat size (Größe)
3
Cutting insert width (s)
3.3 mm
| Downloads | |
|---|---|
| 312_0603_33_EG52-DXF.DXF | Download |
| 312_0603_33_EG52-STP.STP | Download |
| 312_0603_33_EG52-ISO.XML | Download |
| 312_0603_33_EG52-DIN.XML | Download |
| Download all files | |
