312.1105.25 EG52
Insert
Material number 312110525EG52

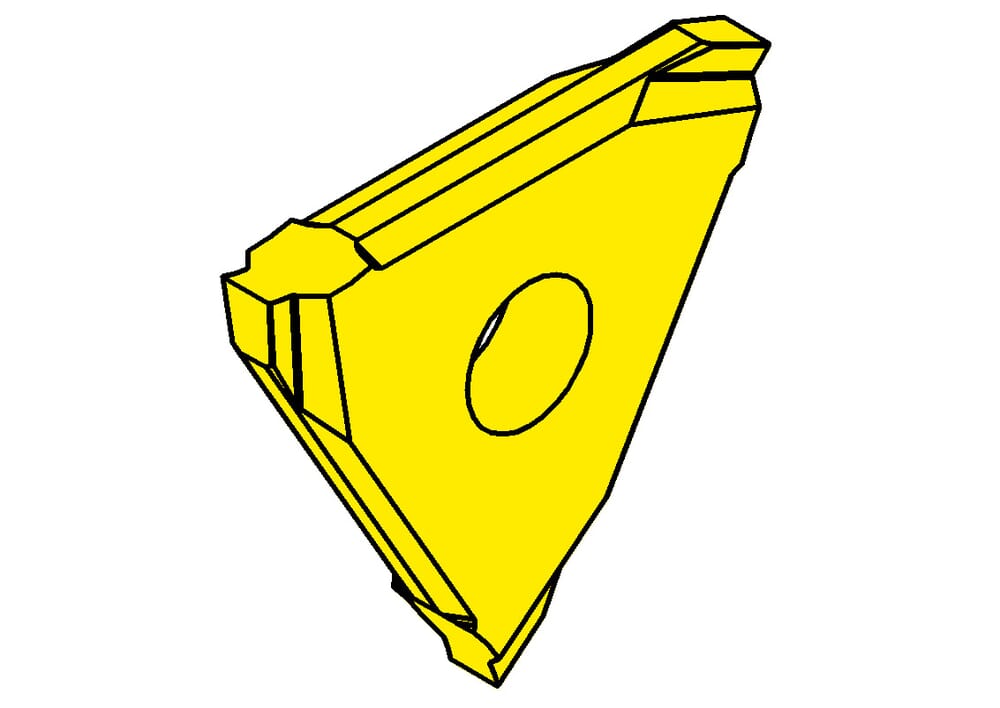

HORN Insert 312.1105.25 EG52 for Turning
Cancellation (a1)
0.64 mm
Maximum depth of groove (tmax)
0.4 mm
ISO_SSC
HORN-31202$000N$$$$$
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
1.24 mm
Milling depth without NAKF (t1)
0.36 mm
Nominal range (Nw)
1.1 mm
Cutting insert width (s)
2.5 mm
| Downloads | |
|---|---|
| 312110525_20240117_020503607.STP | Download |
| 312110525_20210627_111857255.DXF | Download |
| Download all files | |
