312.1812.33 EG52
Insert
Material number 312181233EG52

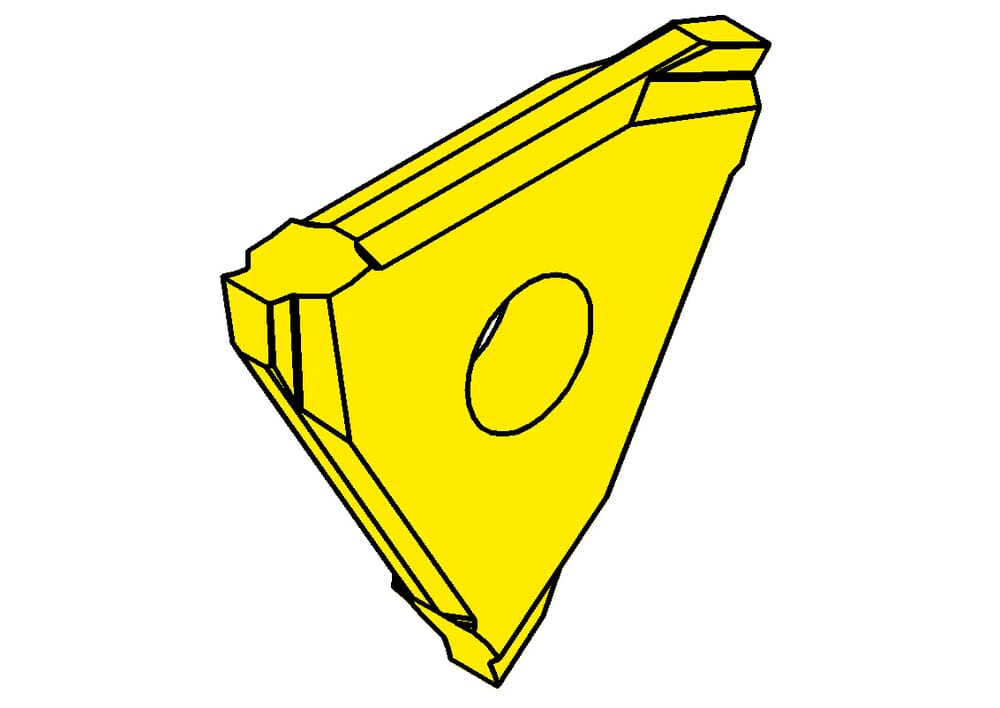

HORN Insert 312.1812.33 EG52 for Turning
Cancellation (a1)
0.67 mm
Maximum depth of groove (tmax)
1.25 mm
ISO_SSC
HORN-31203$000N$$$$$
Katalog_SSC
31203N
Plating seat size (Größe)
3
Width of groove (w)
1.99 mm
Milling depth without NAKF (t1)
1.1 mm
Nominal range (Nw)
1.85 mm
Cutting insert width (s)
3.3 mm
| Downloads | |
|---|---|
| 312181233_20240117_020634188.STP | Download |
| 312181233_20210706_202201377.DXF | Download |
| Download all files | |
