312.5130.63 EG52
Insert
Material number 312513063EG52

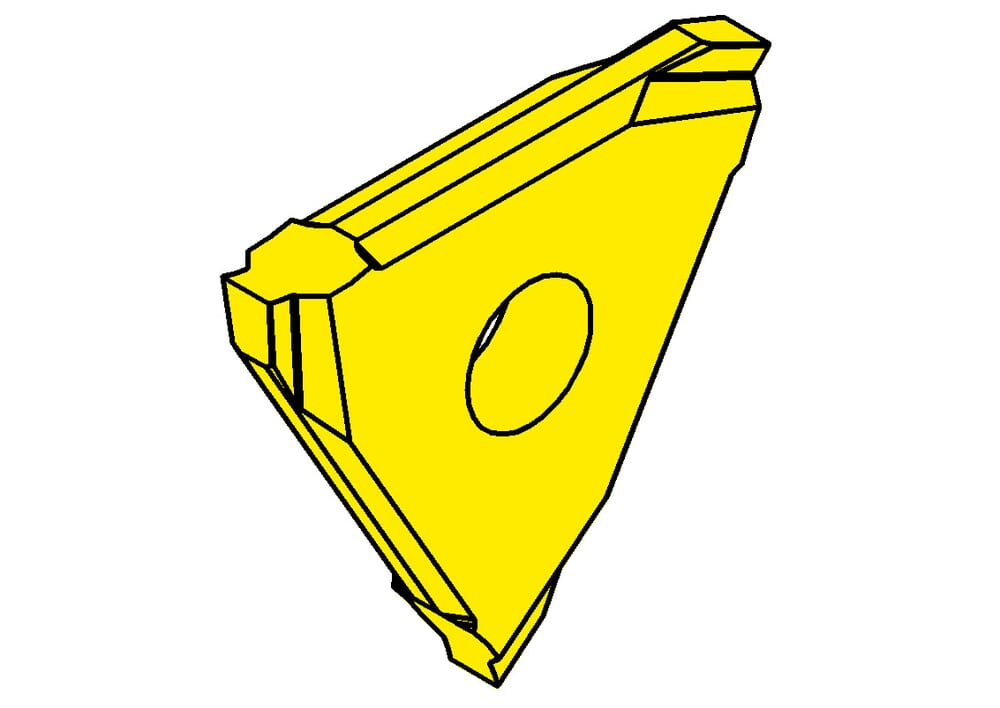

HORN Insert 312.5130.63 EG52 for Turning
Cancellation (a1)
0.52 mm
Maximum depth of groove (tmax)
3 mm
ISO_SSC
HORN-31204$000N$$$$$
Katalog_SSC
31204N
Plating seat size (Größe)
4
Width of groove (w)
5.29 mm
Milling depth without NAKF (t1)
2.85 mm
Nominal range (Nw)
5.15 mm
Cutting insert width (s)
6.3 mm
| Downloads | |
|---|---|
| 312513063_20240117_020729613.STP | Download |
| 312513063.DXF | Download |
| Download all files | |
