313.0815.01 TN35
Inserts
Material number 313081501TN35

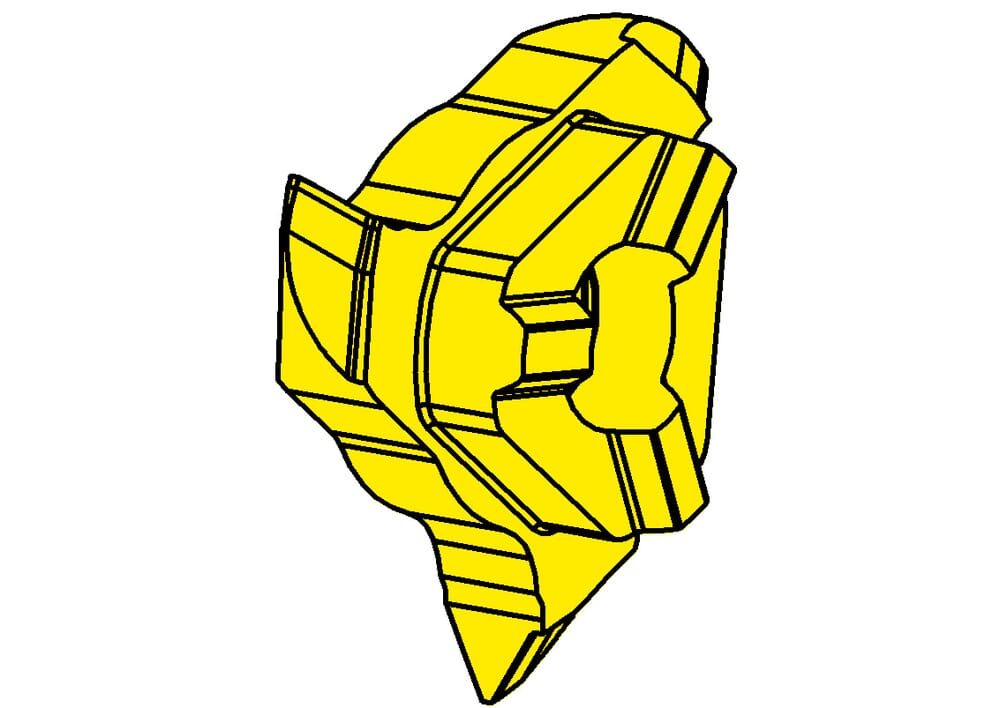

HORN Inserts 313.0815.01 TN35 for Gewinden
Cutting diameter (Ds)
21.7
mm
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Setting length (E)
4.8
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
Pitch (P)
1.5
mm
Maximum pitch (Pmax)
1.5
mm
| Downloads | |
|---|---|
| 313_0815_01_TN35-DXF.DXF | Download |
| 313_0815_01_TN35-STP.STP | Download |
| 313_0815_01_TN35-DIN.XML | Download |
| Download all files | |
