332.0250.2.00 AS45
Insert
Material number 3320250200AS45

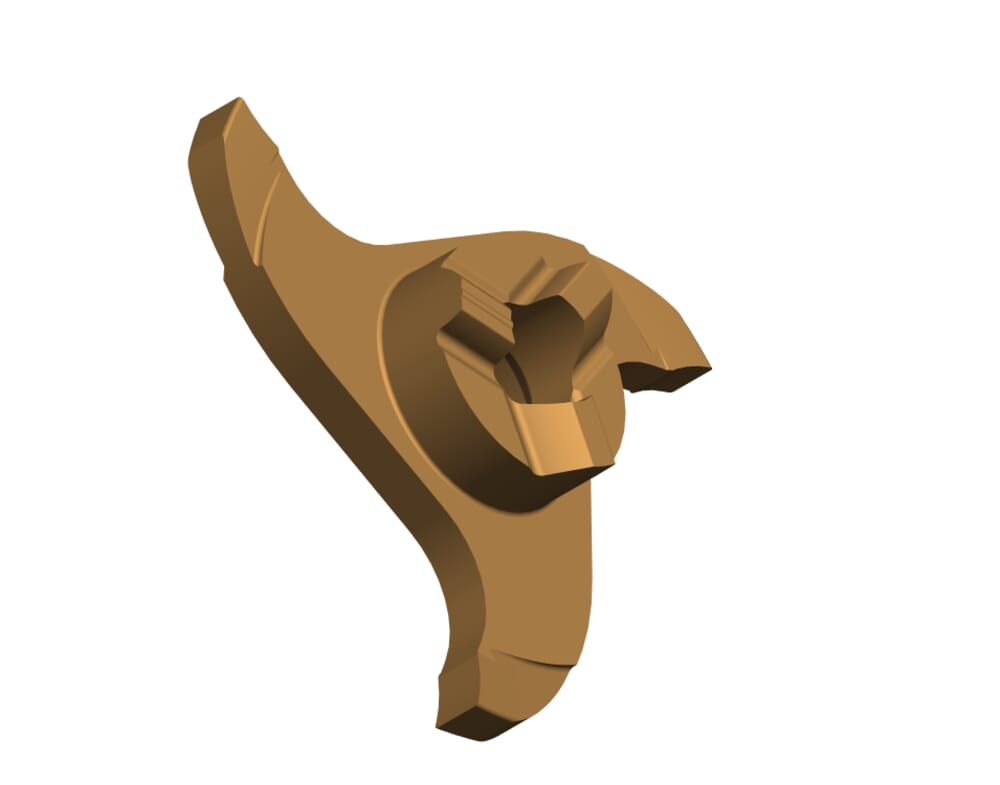

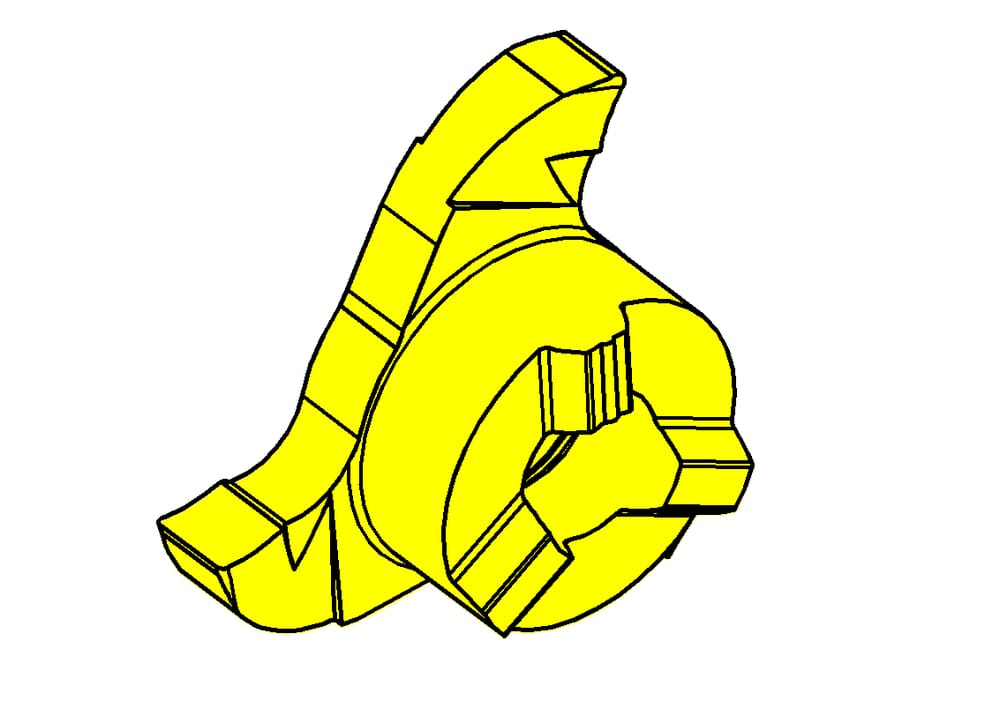

HORN Insert 332.0250.2.00 AS45 for Milling

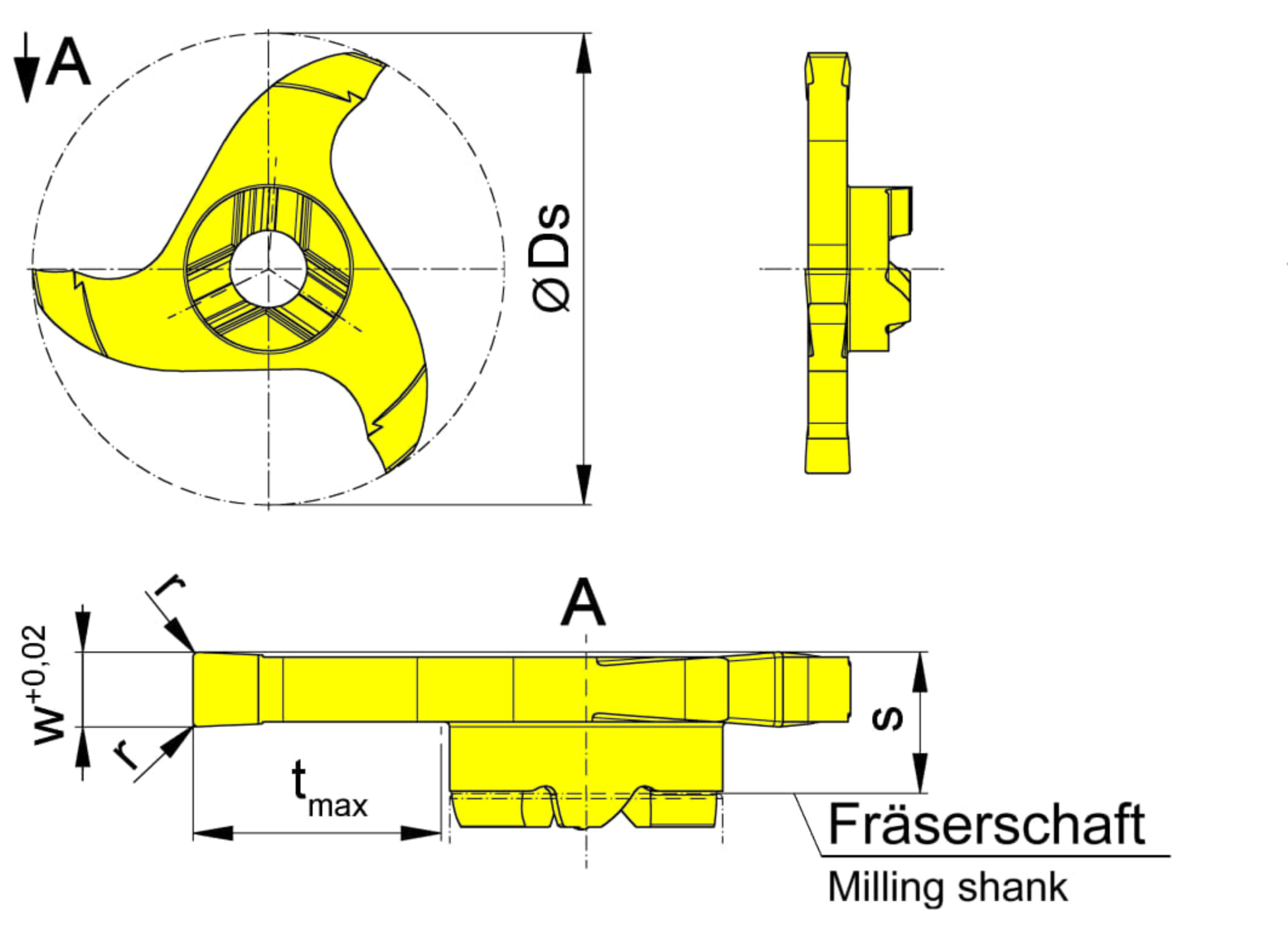

Cutting diameter (Ds)
31.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN332110$84R$$$$$
DIN_SSC
HORN33211084R
Katalog_SSC
332110R
plating-seat-size
1
Width of groove (w)
2.5
mm
Maximum milling depth/ depth of groove (tmax)
10
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 3320250200_20240118_091548068.STP | Download |
| 3320250200_20210626_145732633.DXF | Download |
| Download all files | |
