928.0200.00 IG65
Insert
Material number 928020000IG65

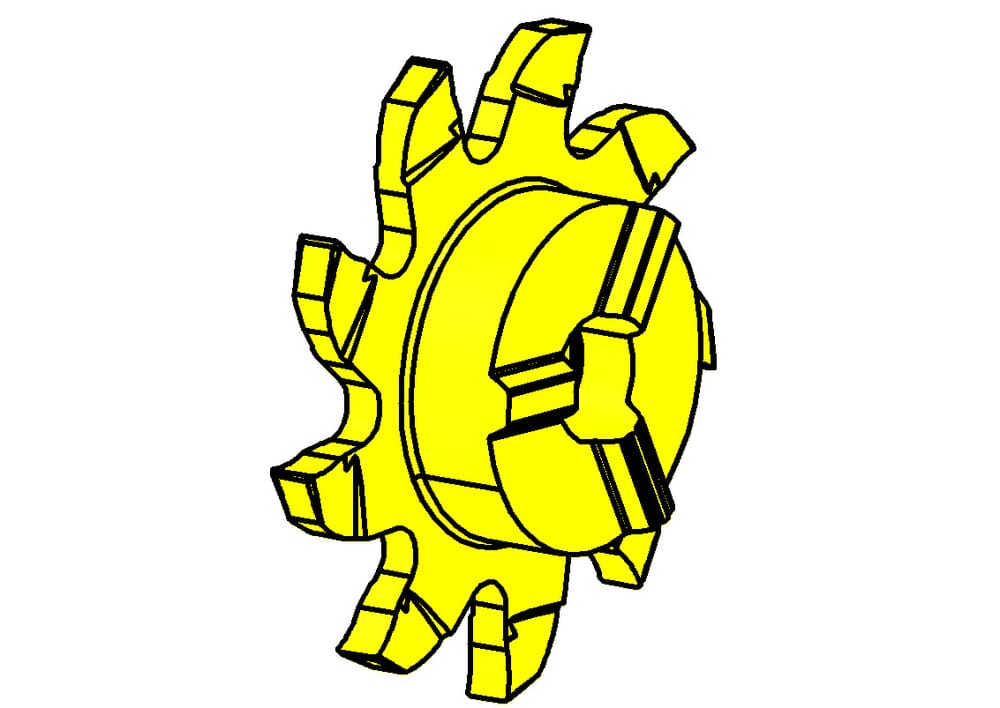

HORN Insert 928.0200.00 IG65 for Milling
Cutting diameter (Ds)
27.7 mm
Number of teeth (Z)
9 St.
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Width of groove (w)
2 mm
Maximum milling depth/ depth of groove (tmax)
6.5 mm
Cutting insert thickness, setting length complete (s)
6.1 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 928_0200_00_IG65-ISO.XML | Download |
| 928_0200_00_IG65-DXF.DXF | Download |
| 928_0200_00_IG65-STP.STP | Download |
| 928_0200_00_IG65-DIN.XML | Download |
| Download all files | |
