928.0250.00 EG55
Insert
Material number 928025000EG55

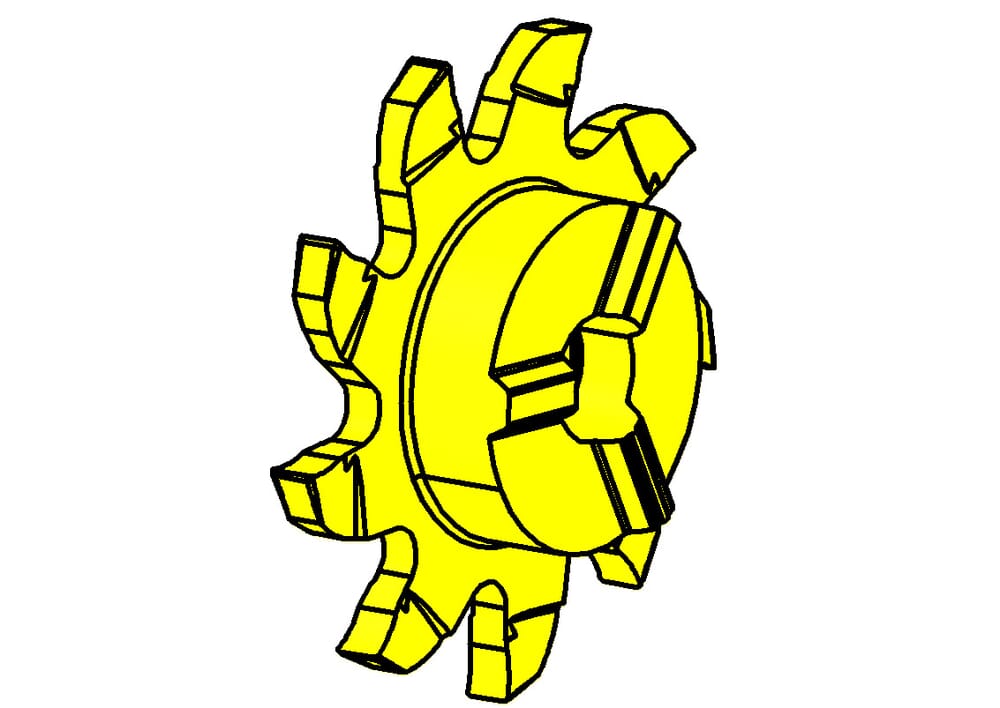

HORN Insert 928.0250.00 EG55 for Milling
Cutting diameter (Ds)
27.7 mm
Number of teeth (Z)
9 St.
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Width of groove (w)
2.5 mm
Maximum milling depth/ depth of groove (tmax)
6.5 mm
Cutting insert thickness, setting length complete (s)
6.1 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 928_0250_00_EG55-ISO.XML | Download |
| 928_0250_00_EG55-DXF.DXF | Download |
| 928_0250_00_EG55-STP.STP | Download |
| 928_0250_00_EG55-DIN.XML | Download |
| Download all files | |
