DAH.37.022.N.08 SA4B
Inserts
Material number DAH37022N08SA4B

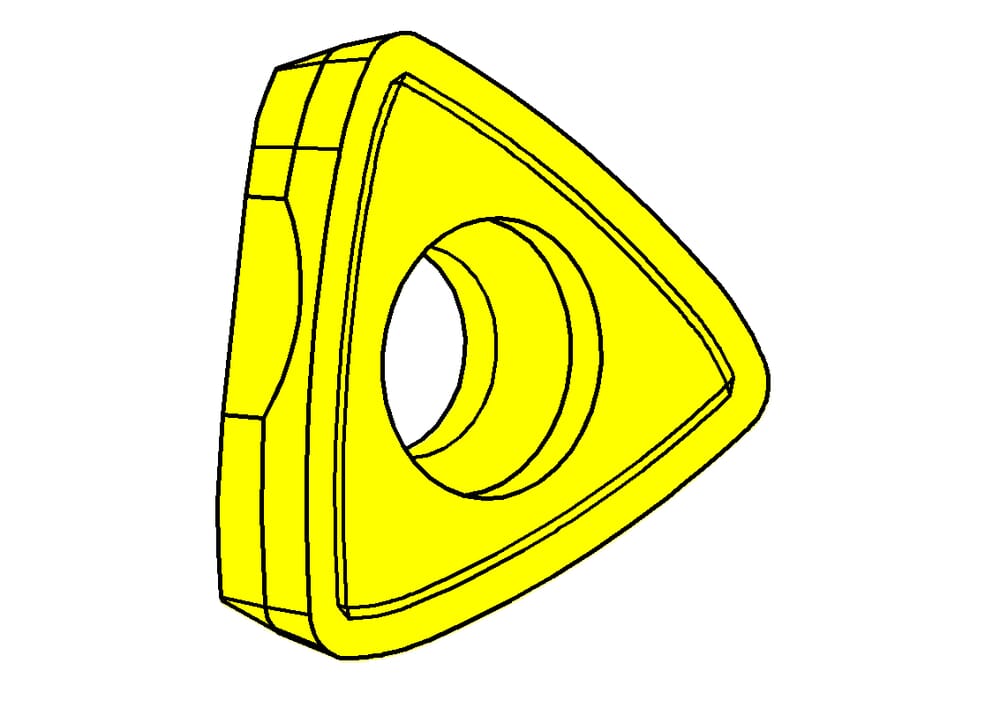

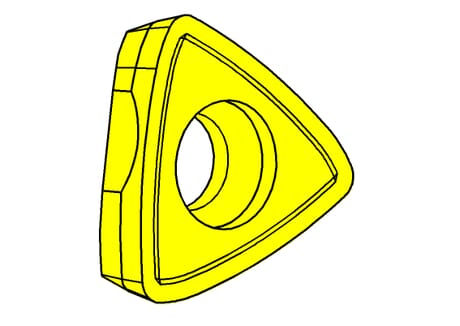

HORN Inserts DAH.37.022.N.08 SA4B for Milling
ISO_SSC
HORNDAH37$$$3N$$$$$
DIN_SSC
HORN-DAH373N
Katalog_SSC
DAH37

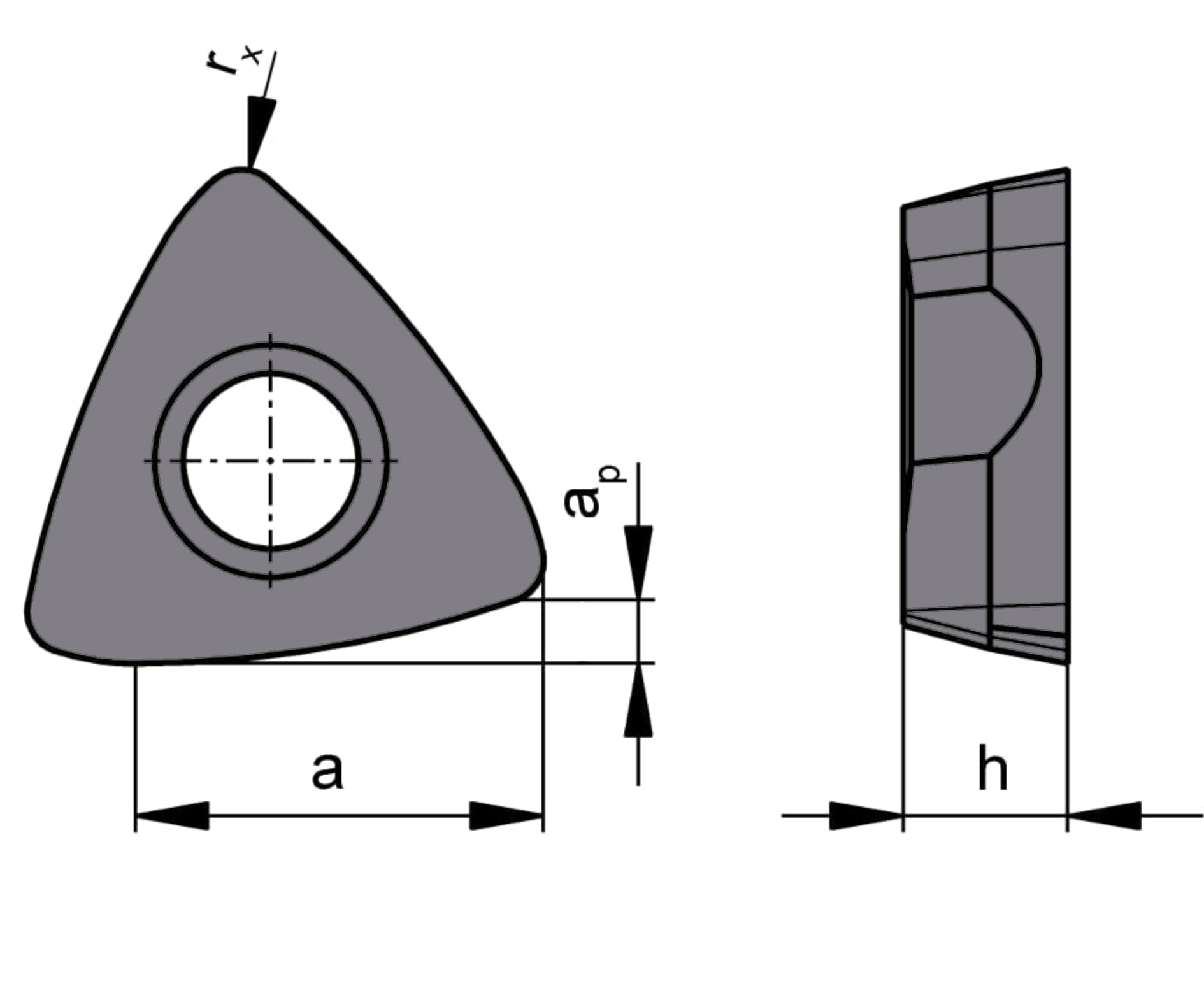

Width of groove (a)
7.9
mm
Corner radius (rx)
0.8
mm
Maximum stepover axial (ap) (ap)
1.2
mm
Cutting insert height, Cutting insert thickness (h)
3.18
mm
| Downloads | |
|---|---|
| DAH37022N08_20210629_061933666.DXF | Download |
| DAH37022N08_20210630_101018323.STP | Download |
| Download all files | |
