DAM31.414.M104.03B
Toolholder
Material number DAM31414M10403B

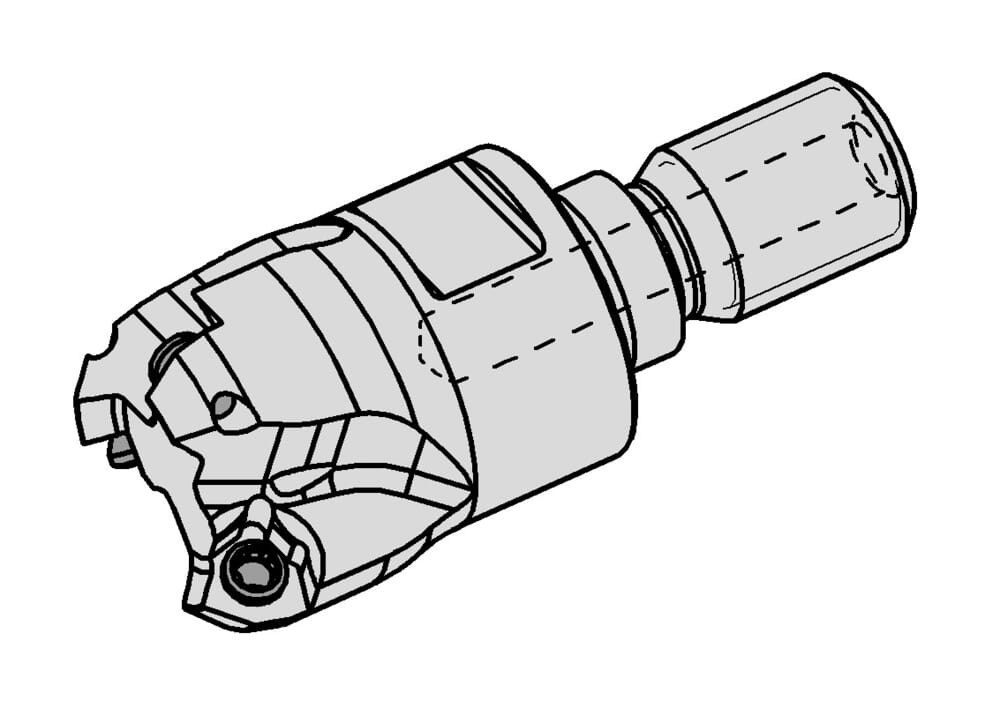

HORN Toolholder DAM31.414.M104.03B for Milling
ISO_CCTMS
HORN01000105$$
Maximum stepover (ap) (ap)
2 mm
Key range (SW)
15 mm
Neck diameter on stop (d4)
18 mm
Length from stop (l2)
25 mm
Total milling length with insert (l1)
45 mm
Katalog_CCTMS
10001
Screw thread (d2)
M10
DIN_CCTMS
HORN-01000105
Katalog_CCTWS
DA3120
DIN_CCTWS
HORN-DA31203N
ISO_CCTWS
HORNDA3120$$3N$$$$$
Diameter (d6)
20.9 mm
Diameter miller body (d1)
19.8 mm
Maximum cutting circle diameter (d5)
19 mm
Number of teeth (Z)
3 St.
Cutting diameter (Ds)
14.4 mm
| Downloads | |
|---|---|
| DAM31_414_M104_03B-DXF.DXF | Download |
| DAM31_414_M104_03B-STP.STP | Download |
| DAM31_414_M104_03B-ISO.XML | Download |
| DAM31_414_M104_03B-DIN.XML | Download |
| Download all files | |
