DCG.3.M5.080.3.2.06 AN25
Endmill
Material number DCG3M50803206AN25

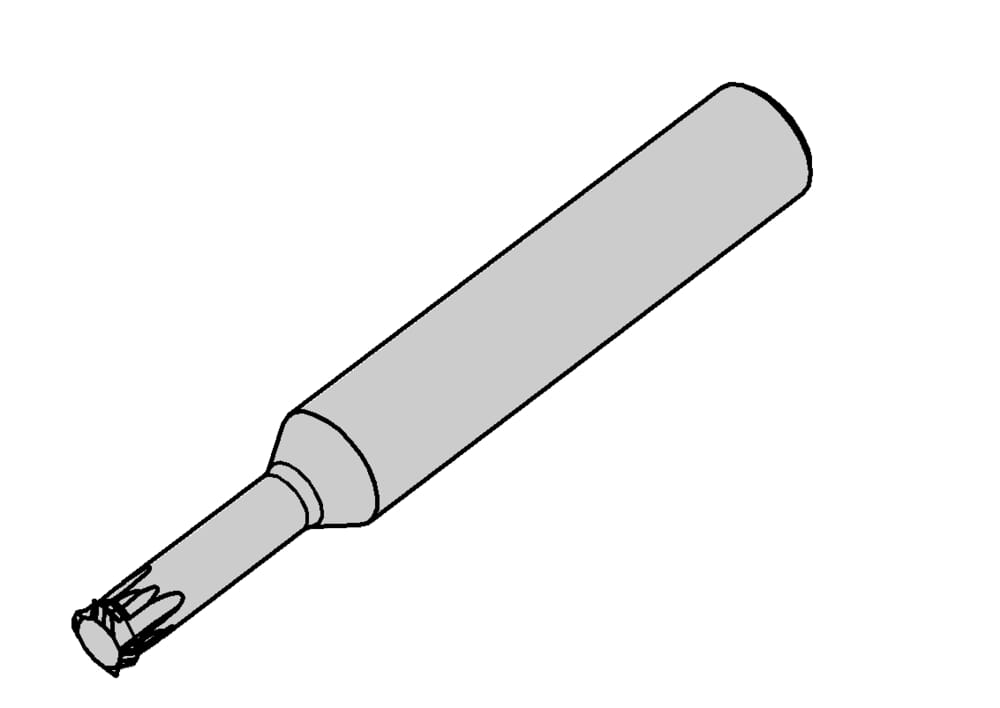

HORN Endmill DCG.3.M5.080.3.2.06 AN25 for Milling

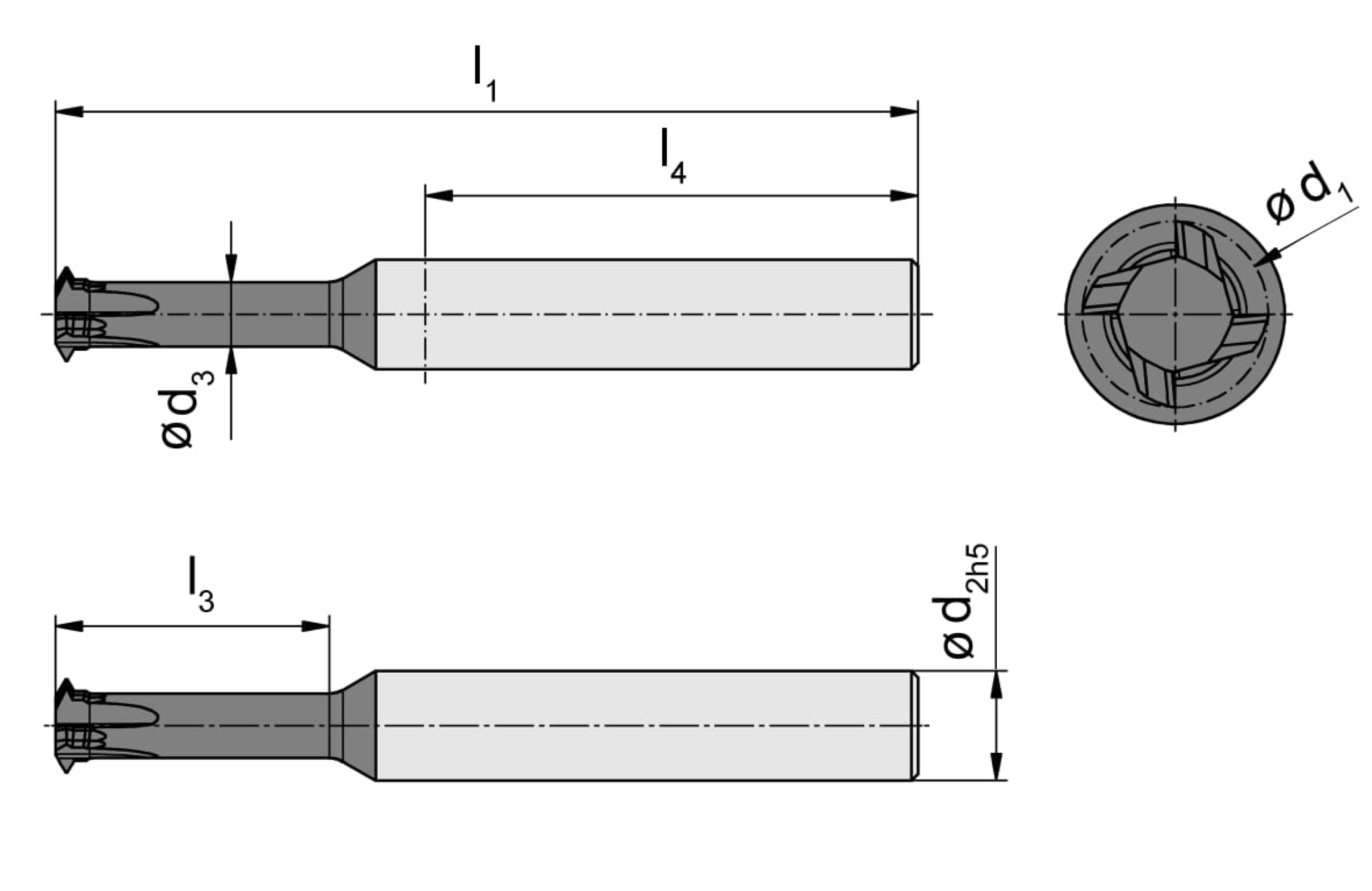

Shank, clamping length (l4)
36
mm
Pitch (P)
0.8
mm
Smallest bore diameter (Dmin)
4.2
mm
Thread (Gewinde)
M5
Total length (l1)
50
mm
Neck diameter (d3)
2.5
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
3.6
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG3M50803206_20240116_232600598.STP | Download |
| DCG3M50803206_20210625_211842143.DXF | Download |
| Download all files | |
