DCG.4.M6.100.5.2.06 AN25
DC threadmill - Metric ISO - M6 full profile
Material number DCG4M61005206AN25

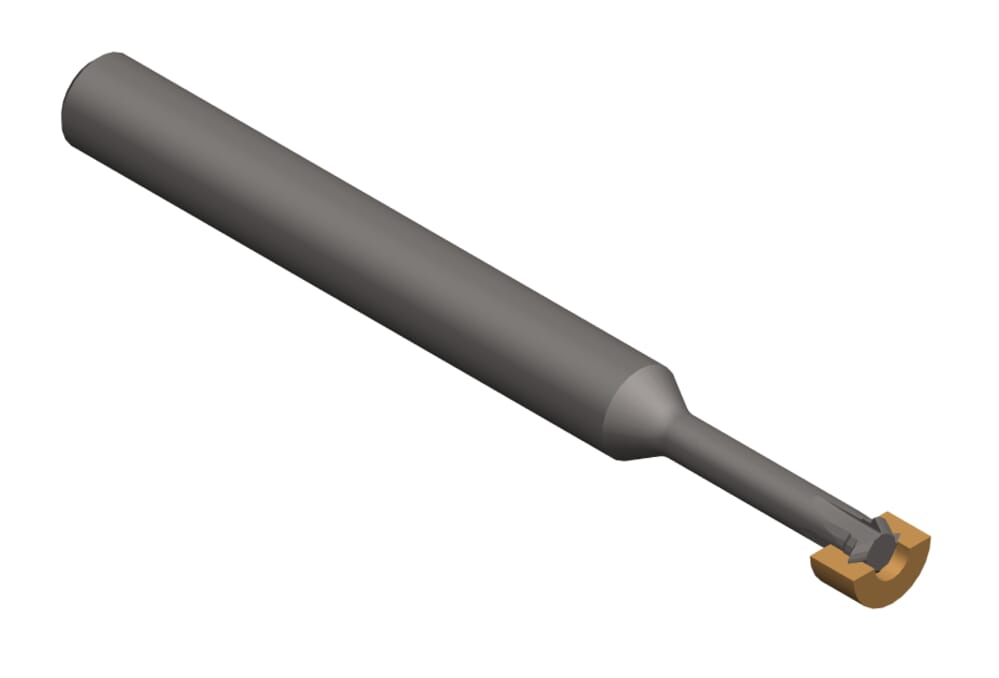

HORN DC threadmill - Metric ISO - M6 full profile DCG.4.M6.100.5.2.06 AN25 for Milling
Shank, clamping length (l4)
40
mm
Pitch (P)
1
mm
Smallest bore diameter (Dmin)
5
mm
Thread (Gewinde)
M6
Total length (l1)
63
mm
Neck diameter (d3)
2.8
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
4.2
mm
Neck length (l3)
16
mm
Shank diameter (d2)
6
mm
