DG20.M25.02.6.06.2A PD20

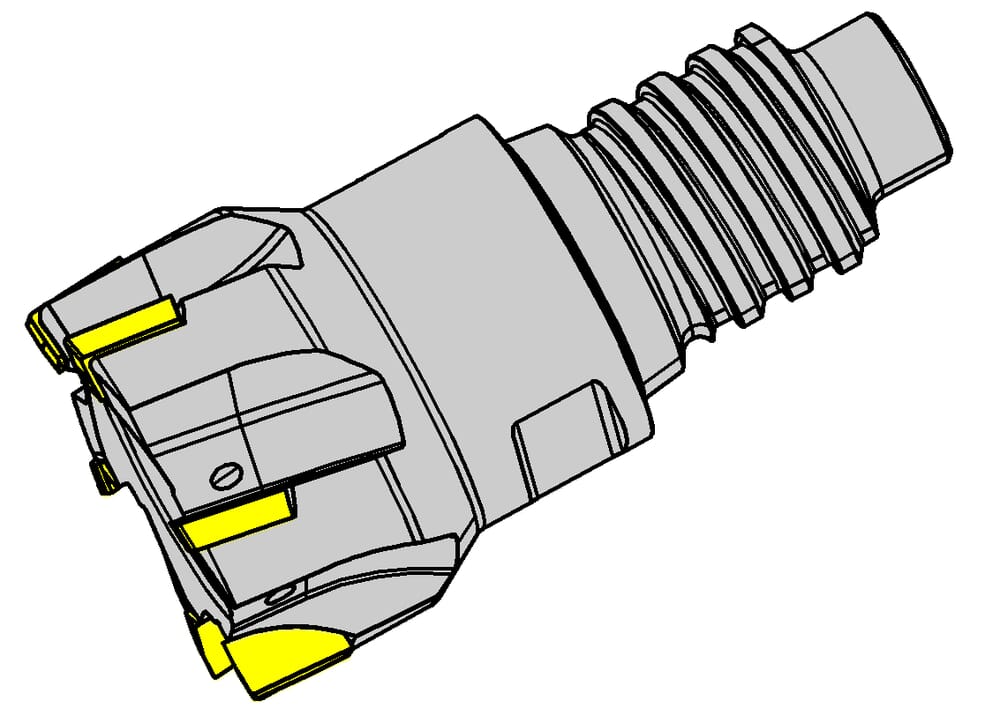

Milling Head PCD tipped
Material number DG20M25026062APD20
HORN Milling Head PCD tipped DG20.M25.02.6.06.2A PD20 for Milling

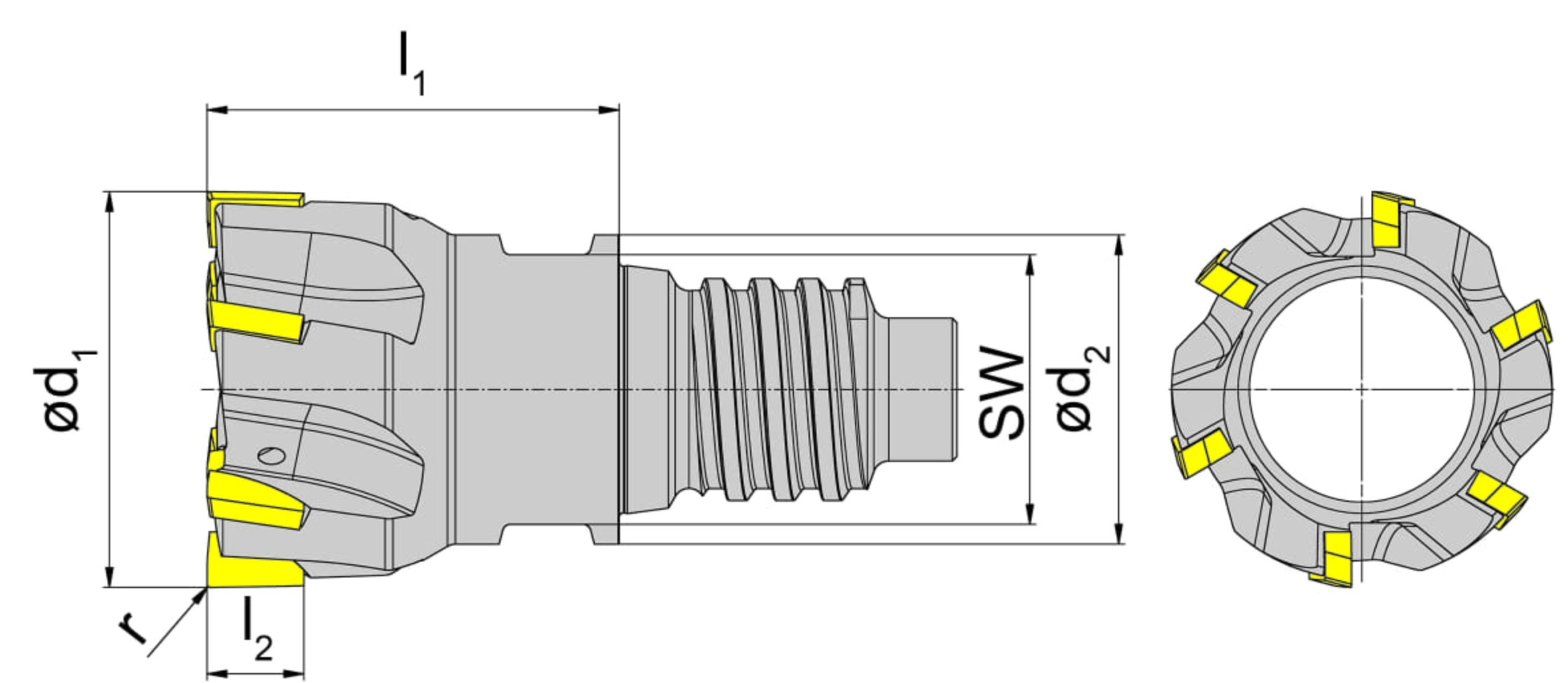

Shank diameter (d2)
19.5
mm
Cutting diameter (d1)
25
mm
Number of teeth (Z)
6
St.
System (System)
DG20
Key range (SW)
17
mm
Corner radius (r)
0.2
mm
Effective cutting length (l2)
6
mm
Tool length from stop, flange (l1)
26
mm
