DSTC.5.10.02.077.10 TSCC
DS Milling cutter
Material number DSTC5100207710TSCC

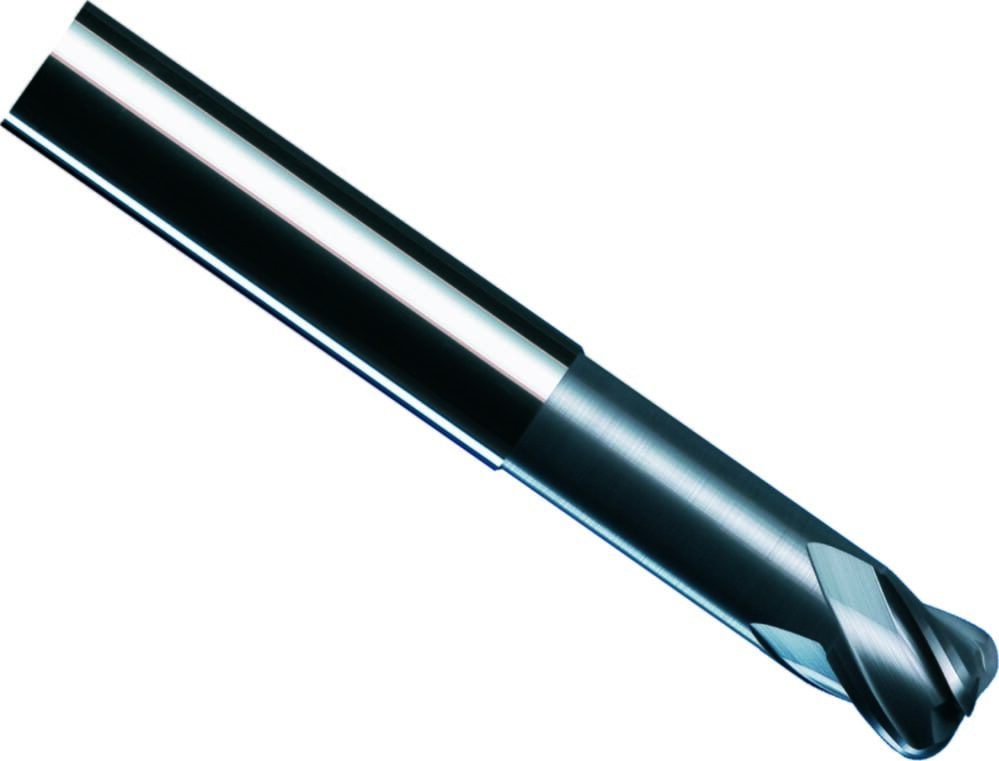

HORN DS Milling cutter DSTC.5.10.02.077.10 TSCC for Milling

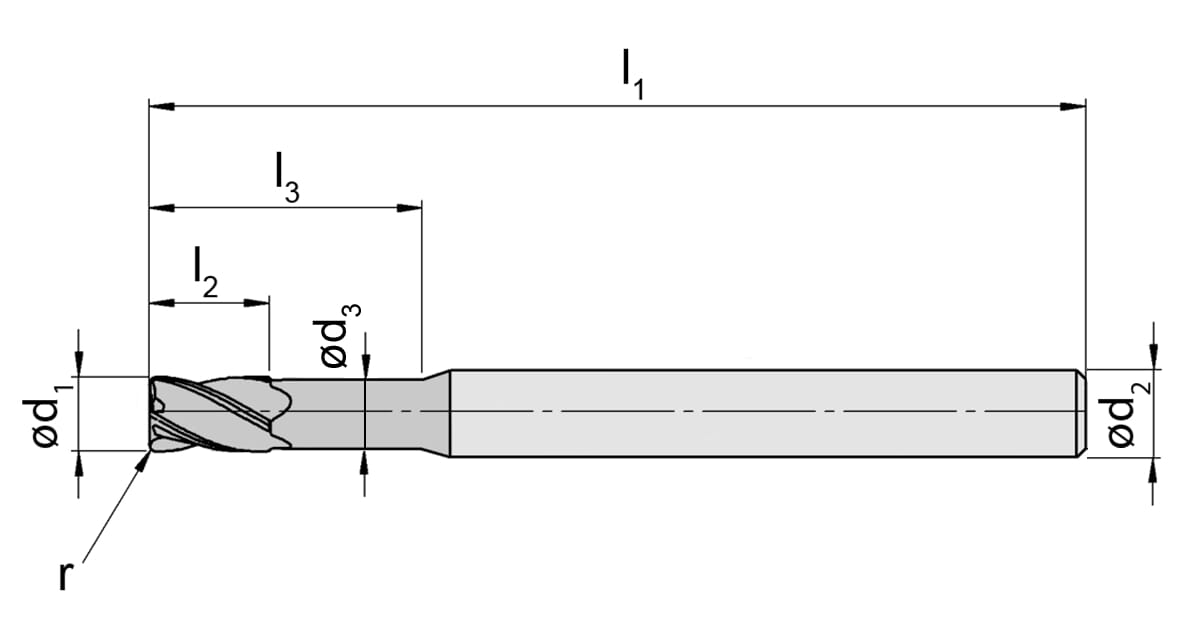

Shank diameter (d2)
10
mm
Neck length (l3)
25.5
mm
Cutting diameter (d1)
10
mm
Number of teeth (Z)
5
St.
DIN_CCTMS
ZYL01000105
ISO_CCTMS
ZYL01G1000h$06
Neck diameter (d3)
9.4
mm
Corner radius (r)
0.2
mm
Effective cutting length (l2)
15
mm
Total length (l1)
77
mm
| Downloads | |
|---|---|
| DSTC_5_10_02_077_10.STP | Download |
| Download all files | |
