HDS4X.HSKA063.16.120

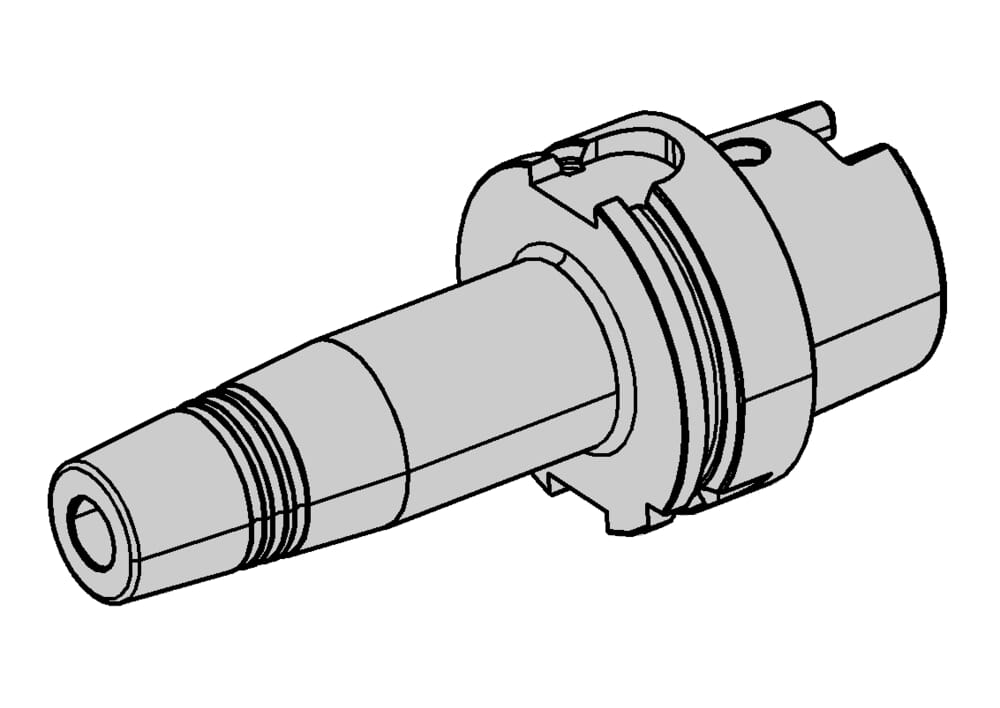

Hydraulic Expansion Toolholder - HSK-A 63 - Slim 4ax
Material number HDS4XHSKA06316120
HORN Hydraulic Expansion Toolholder - HSK-A 63 - Slim 4ax HDS4X.HSKA063.16.120 for
Largest outer diameter (d3)
34
mm
Maximum clamping length (l2)
53.2
mm
Working length, Extension length (l4)
94
mm
Clamping diameter (d1)
16
mm
System (System)
HSK-A 63
Smallest outer diameter (d6)
27
mm
Weight [kg] (Gewicht [kg])
1.2
kg
Cone diameter (d2)
34
mm
Total length (l1)
120
mm
Tightening torque (Mmin [Nm])
185
Nm
| Downloads | |
|---|---|
| HDS4XHSKA06316120.DXF | Download |
| HDS4XHSKA06316120_20240118_055824342.STP | Download |
| Download all files | |
