L105.0200.5.5 TN35
Inserts
Material number L105020055TN35

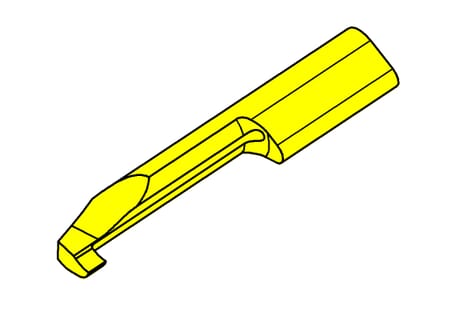

HORN Inserts L105.0200.5.5 TN35 for Turning
Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
45
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
3.5
mm
Width of groove (w)
2
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Maximum depth of groove (tmax)
1
mm
Head size (a)
4.7
mm
Neck length (l2)
30
mm
| Downloads | |
|---|---|
| L105020055.STP | Download |
| L105020055_20210706_175752479.DXF | Download |
| Download all files | |
