L114.1430.00 TN35

Inserts

Material number L114143000TN35

HORN Inserts L114.1430.00 TN35 for Turning

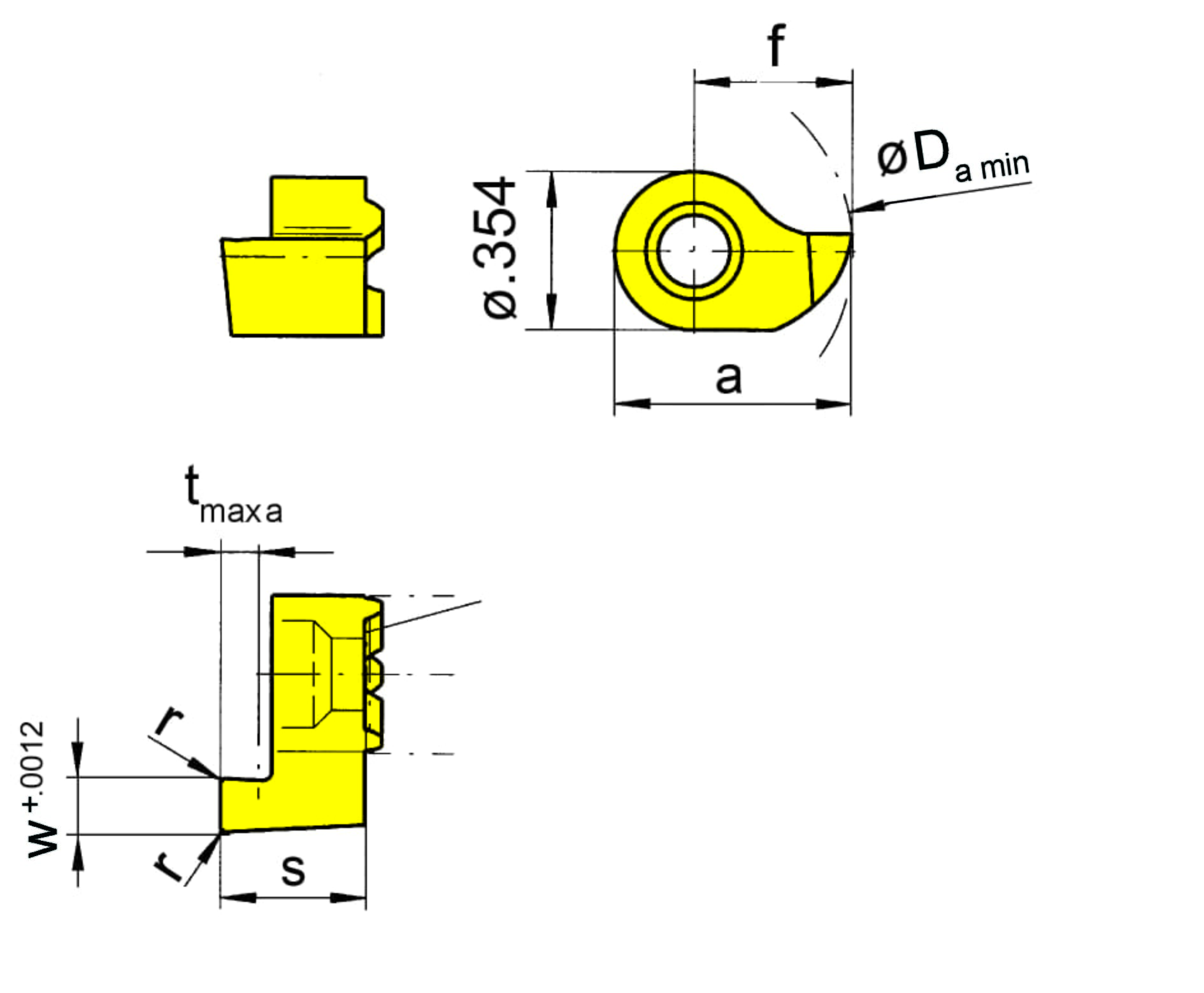

Head size (a)

13.5 mm

Maximum depth of groove (tmax a)

3 mm

Smallest axial bore diameter (Da min)

14 mm

ISO_SSC

HORN114090$84L$$$$$

Katalog_SSC

114090L

Width of groove (w)

3 mm

Setting range radial (f)

9 mm

Corner radius (r)

0.2 mm

Cutting insert height, Cutting insert thickness (s)

8.3 mm

screw

030350P0412

Inserts

328305001TN35

Spannschraube

030500P0313

Inserts

313016000TN35

103010642
