L210.2525.K4
Toolholders
Material number L2102525K4

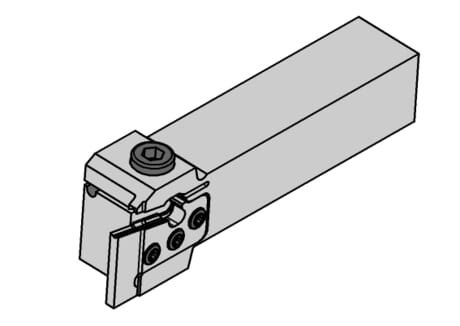

HORN Toolholders L210.2525.K4 for Turning

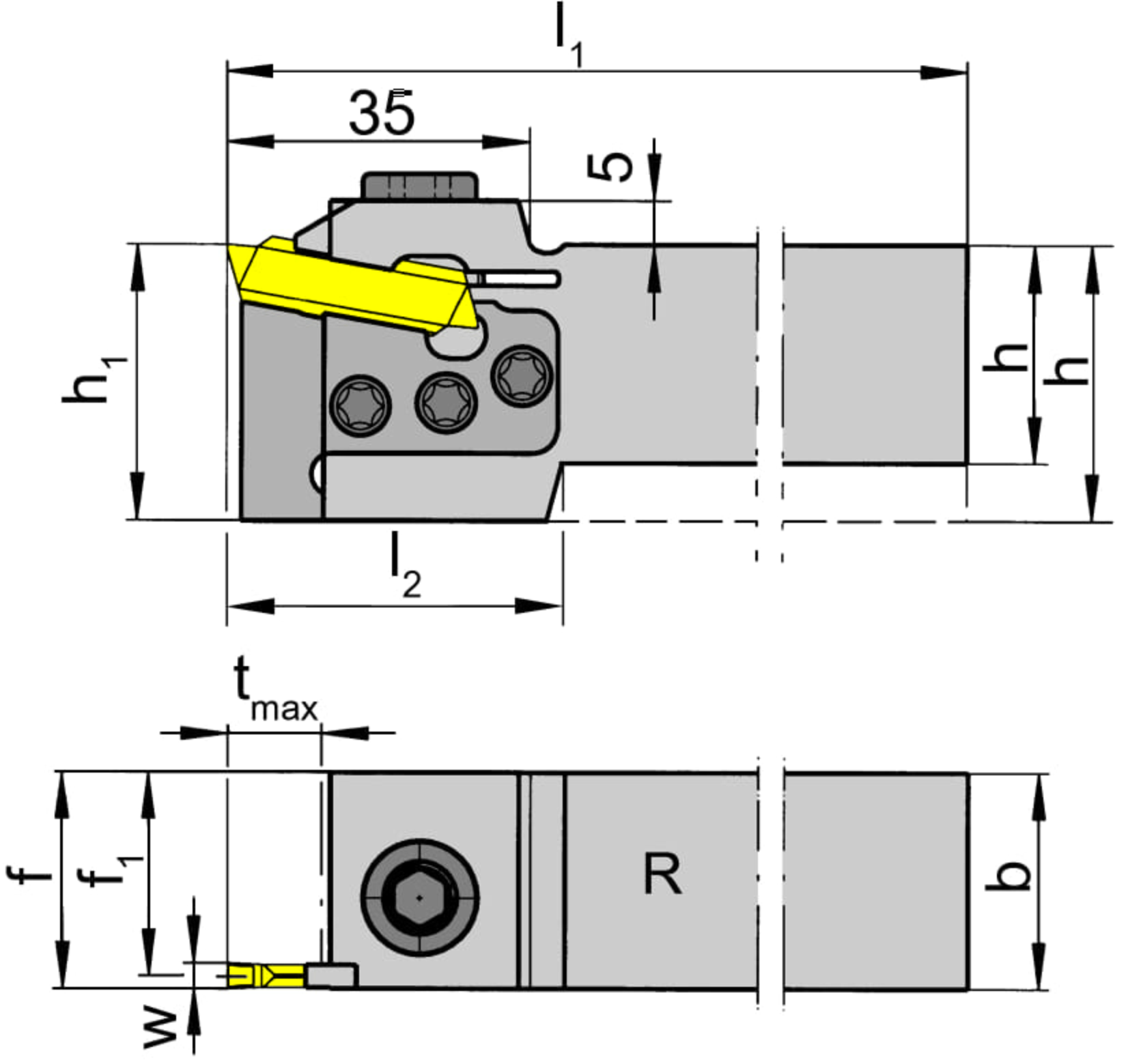

Peak height (h1)
32
mm
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Head length (including cutting edge) (l2)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Clamping range maximum (Spannbereich)
5
mm
Clamping range minimum (Spannbereich)
4
mm
Maximum insertion depth (tmax)
11
mm
Shank height (h)
25
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
22.7
mm
Shank width (b)
25
mm
