L214.0032.04
Toolholders
Material number L214003204

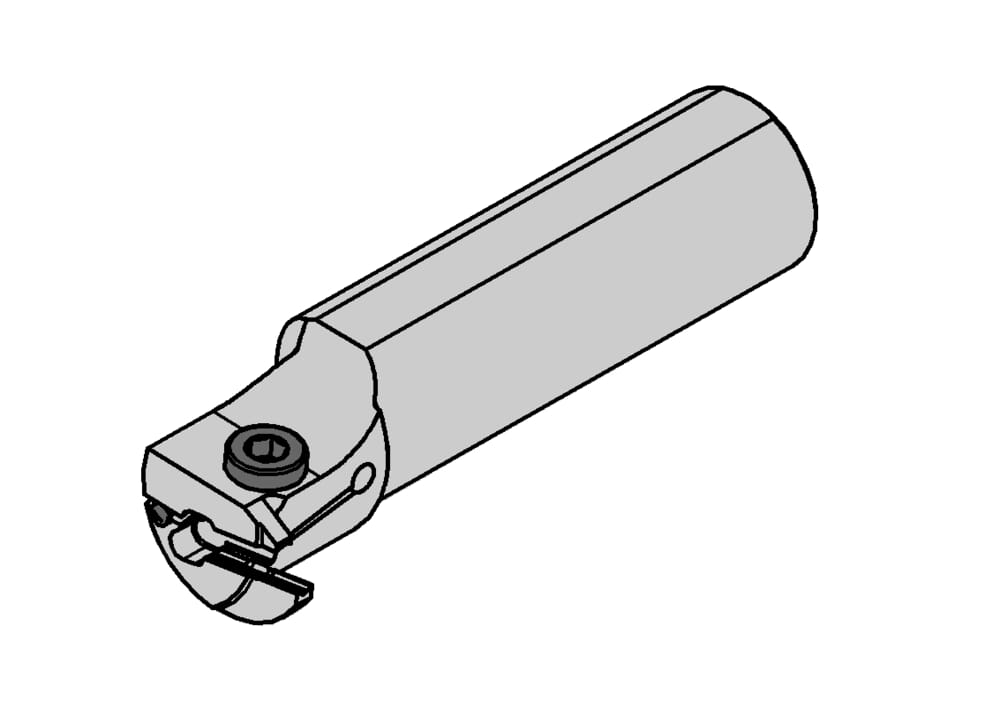

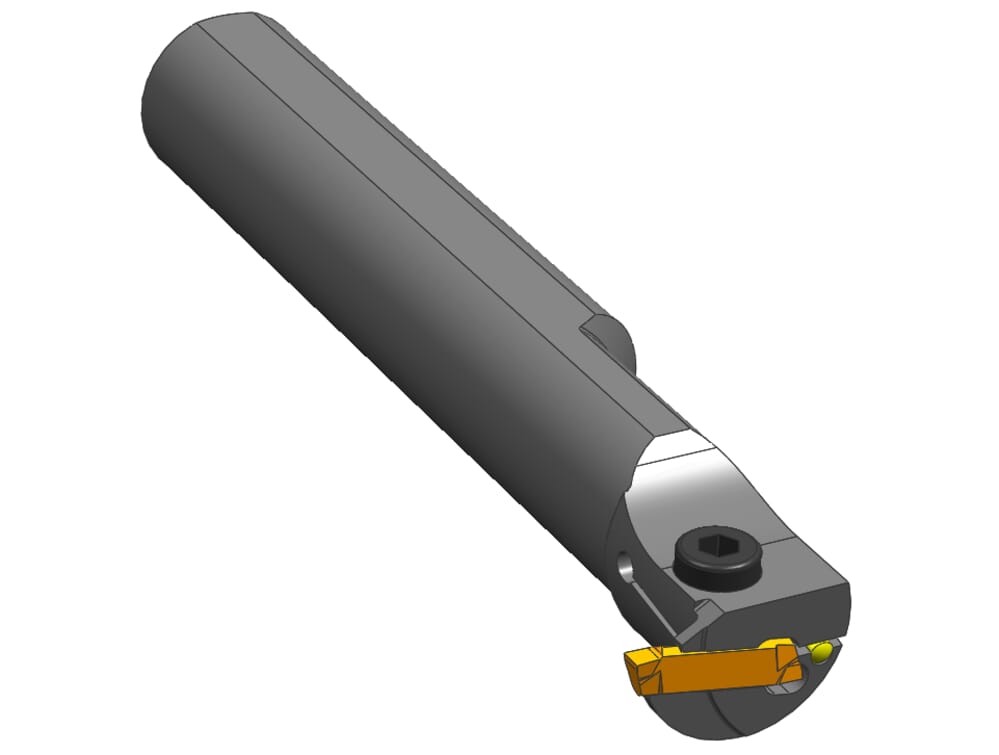

HORN Toolholders L214.0032.04 for Turning

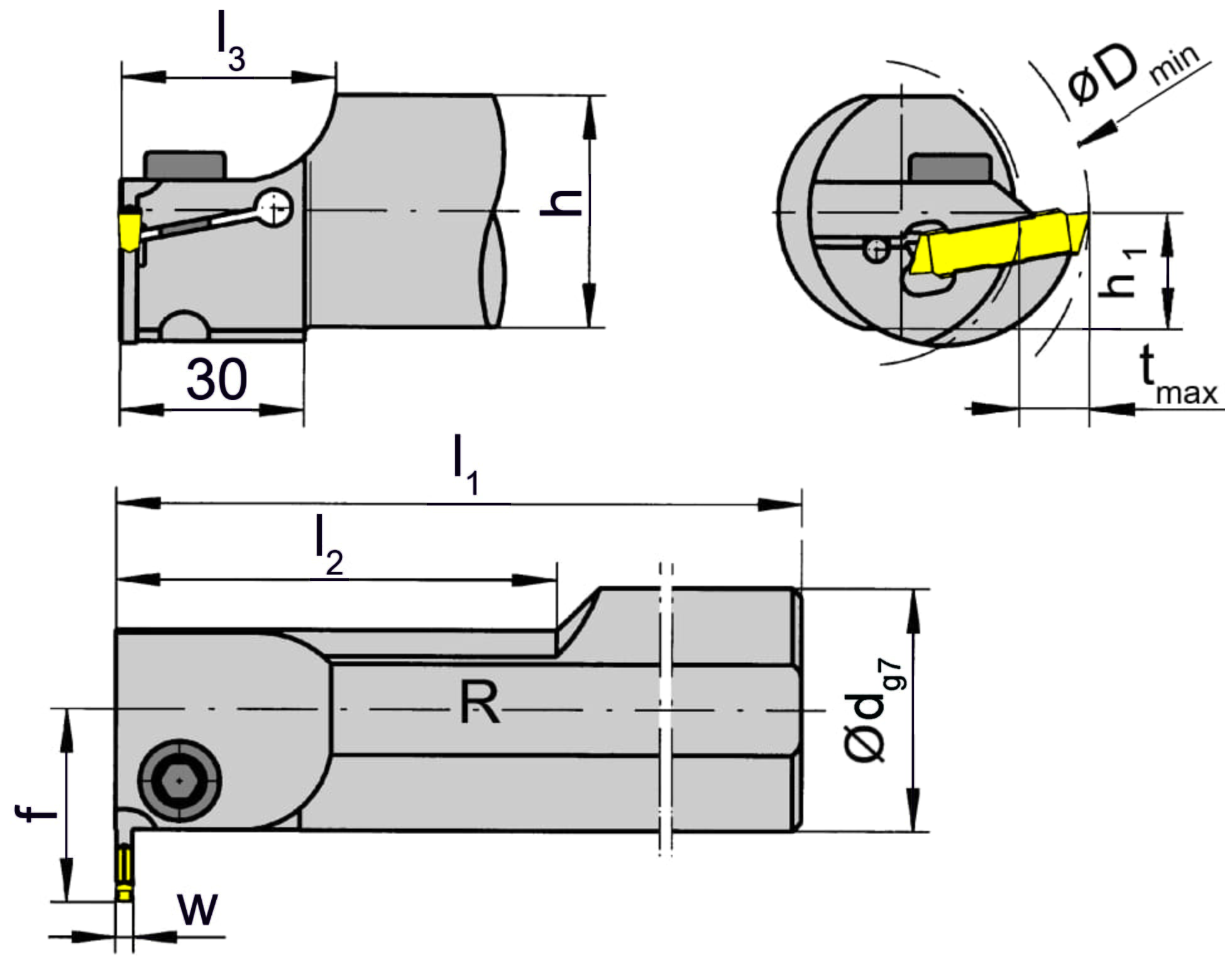

Peak height (h1)
15
mm
Working length (l2)
70
mm
Plating seat size (Größe)
4
ISO_CCTMS
ZYL23G3200$$$$
DIN_CCTMS
ZYL03202305
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Clamping range maximum (Spannbereich)
5
mm
Clamping range minimum (Spannbereich)
4
mm
Shank, clamping diameter (d)
32
Minimum drilling diameter (Dmin)
38
mm
Maximum depth of groove (tmax)
7.5
mm
Total length (including cutting insert) (l1)
200
mm
Adjustment dimension from center (f)
28
mm
Outcropping, neck, working length (l3)
35
mm
Distance of clamping surface (s) (h)
30
mm
| Downloads | |
|---|---|
| L214003204.DXF | Download |
| L214_0032_04_20171121_214847190.STP | Download |
| Download all files | |
