L333.0025.05
Toolholders
Material number L333002505

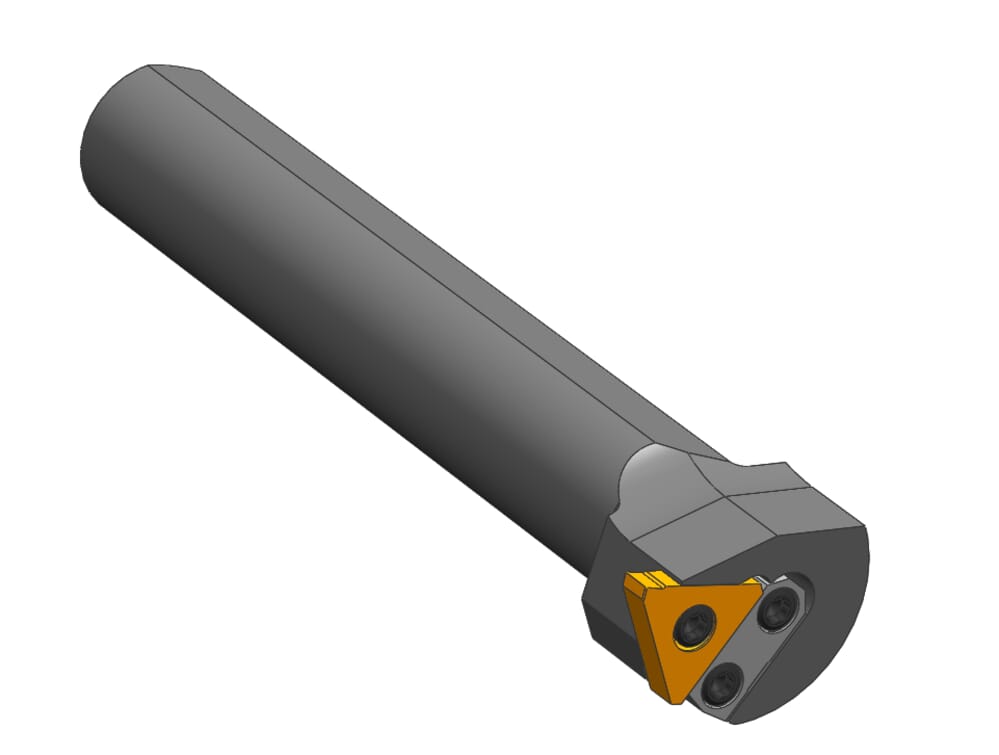

HORN Toolholders L333.0025.05 for Turning
ISO_CCTWS
HORN31505$051R$$$$$
Working length (l2)
20 mm
Plating seat size (Größe)
5
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502305
Katalog_CCTWS
31505R
DIN_CCTWS
HORN-31505051R
Distance of clamping surface (s) (h)
23 mm
Peak height (h1)
11.5 mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
43 mm
Head size (a)
38 mm
Total length (without cutting insert) (l)
170 mm
Total length (including cutting insert) (l1)
170.3 mm
Adjustment dimension from center (f)
20 mm
Shank width (b)
25 mm
