LB223.HM25.2.62
Toolholders
Material number LB223HM25262

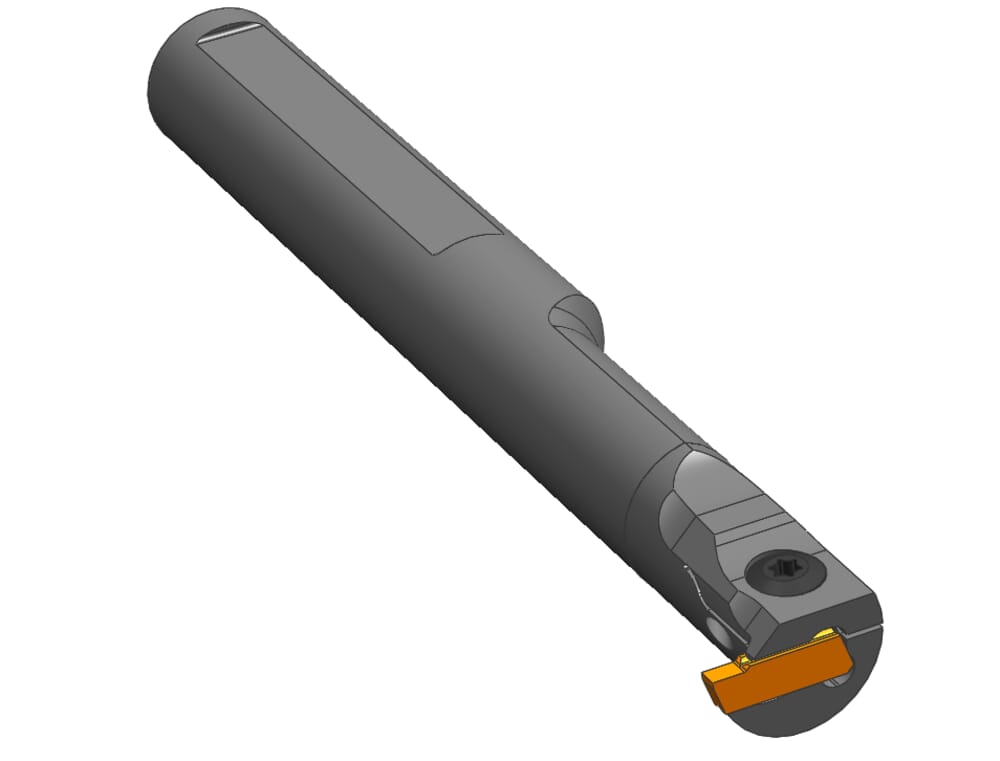

HORN Toolholders LB223.HM25.2.62 for Turning
DIN_CCTWS
HORN-223020008N
Working length (l2)
70 mm
Plating seat size (Größe)
2
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502305
Katalog_CCTWS
22302
Distance of clamping surface (s) (h)
23 mm
ISO_CCTWS
HORN223020008N$$$$$
Clamping range maximum (Spannbereich)
2.99 mm
Clamping range minimum (Spannbereich)
2 mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
25 mm
Maximum depth of groove (tmax)
6.3 mm
Total length (including cutting insert) (l1)
160 mm
Adjustment dimension from center (f)
18.8 mm
| Downloads | |
|---|---|
| LB223HM25262.DXF | Download |
| LB223_HM25_2_62_20171121_234222761.STP | Download |
| Download all files | |
