LS108.0100.D1 TH35
Insert
Material number LS1080100D1TH35

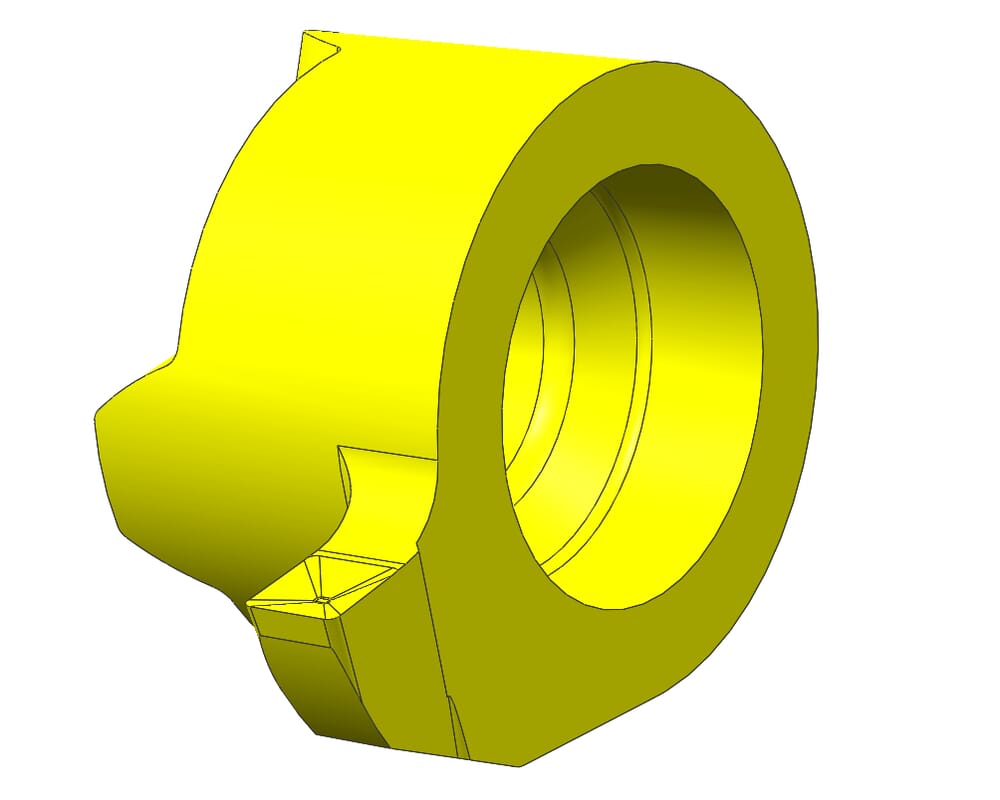

HORN Insert LS108.0100.D1 TH35 for Turning
ISO_SSC
HORN108060$84L$$$$$
Smallest bore diameter (Dmin)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.2
mm
Corner radius (r)
0.1
mm
Tooth diameter, head diameter (d)
6
mm
Setting range radial (f)
4.8
mm
Width of groove (w)
1
mm
Katalog_SSC
108060L
DIN_SSC
HORN-10806084L
Maximum depth of groove (tmax)
1
mm
Head size (a)
7.8
mm
| Downloads | |
|---|---|
| LS1080100D1_20230113_105714250.STP | Download |
| Download all files | |
