LS108.0200.D2 TH35

Insert

Material number LS1080200D2TH35

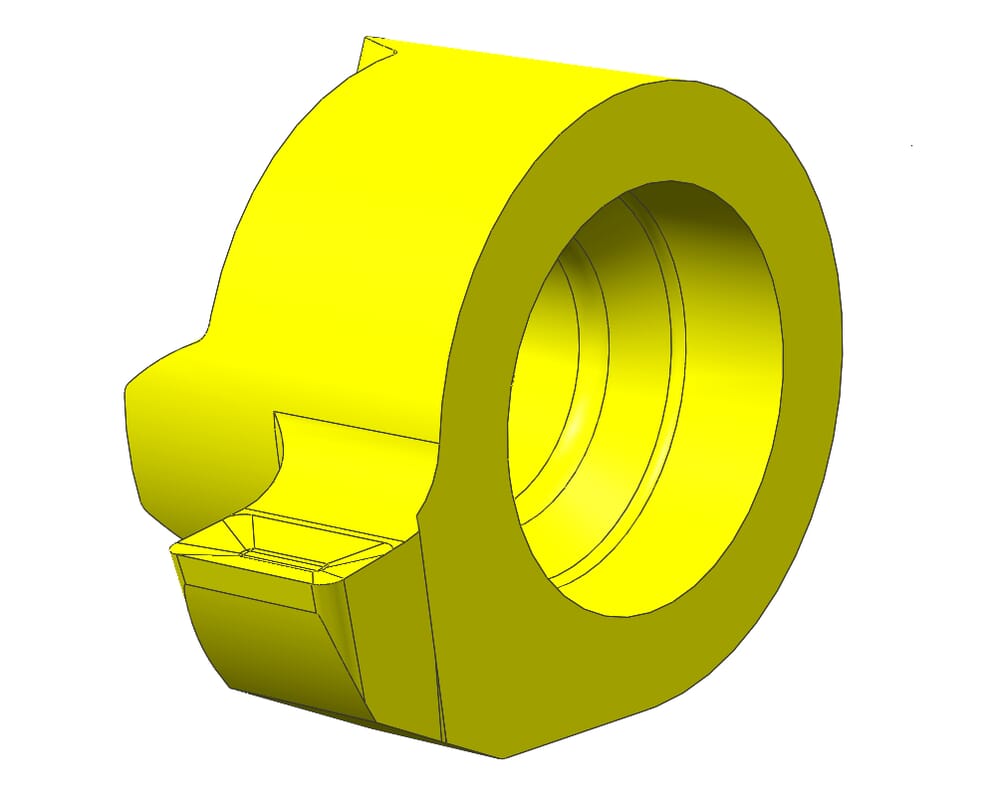

HORN Insert LS108.0200.D2 TH35 for Turning

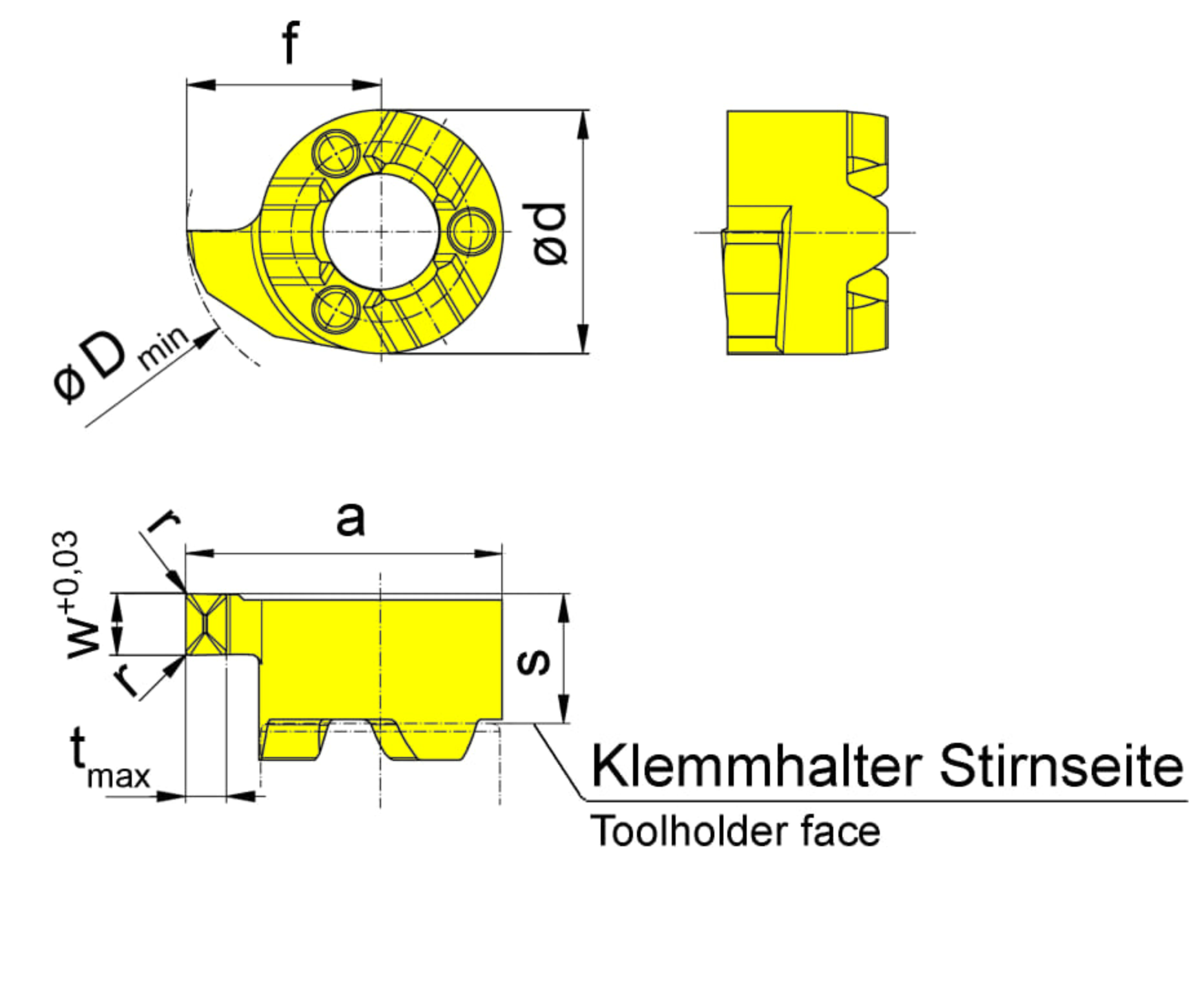

Setting range radial (f)

4.8 mm

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.2 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

6 mm

Head size (a)

7.8 mm

Width of groove (w)

2 mm

Katalog_SSC

108060L

ISO_SSC

HORN108060$84L$$$$$

Maximum depth of groove (tmax)

1 mm

DS Milling cutter

DSH4030050020TS3K
