M101.0080.A16.12
Disk milling cutter
Material number M1010080A1612

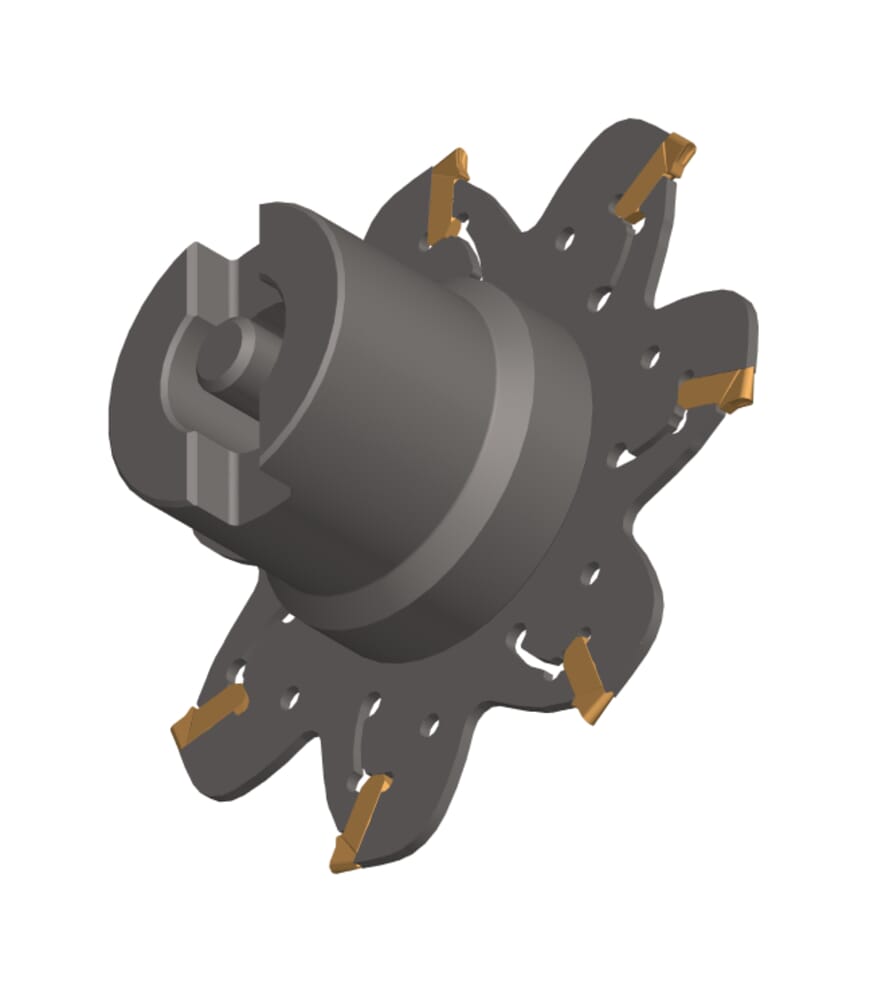

HORN Disk milling cutter M101.0080.A16.12 for Milling
Miller length with indexable insert (h)
33
mm
Diameter of the mandrel (d2)
37
mm
Diameter facing system for disk cutters (d3)
16
mm
Number of revolutions maximum (nmax)
6000
Min-1
Cutting width minimum (Schneidbreite)
1.2
mm
Cutting width maximum (Schneidbreite)
1.2
mm
Plating seat size (Größe)
12
Depth carrier cross groove (P)
5.6
mm
Width carrier cross groove (s)
8.4
mm
Length from stop to base fastening screw head (l2)
22.7
mm
Mounting hole depth (l1)
18
mm
Neck diameter/ Flange diameter miller mandrel (d4)
32
mm
Lowering for mounting screw head (d1)
13.5
mm
Wide disc cutter without cutting insert (b)
0.95
mm
Maximum milling depth (tmax)
20
mm
ISO_CCTMS
FDA22G1600$$$$
DIN_CCTMS
FDA01602200
Katalog_CCTWS
10112
DIN_CCTWS
HORN-101120058N
ISO_CCTWS
HORN101120058N$$$$$
Number of teeth (Z)
7
St.
Cutting diameter (Ds)
80
mm
