M101.0100.28.20
Toolholder
Material number M10101002820

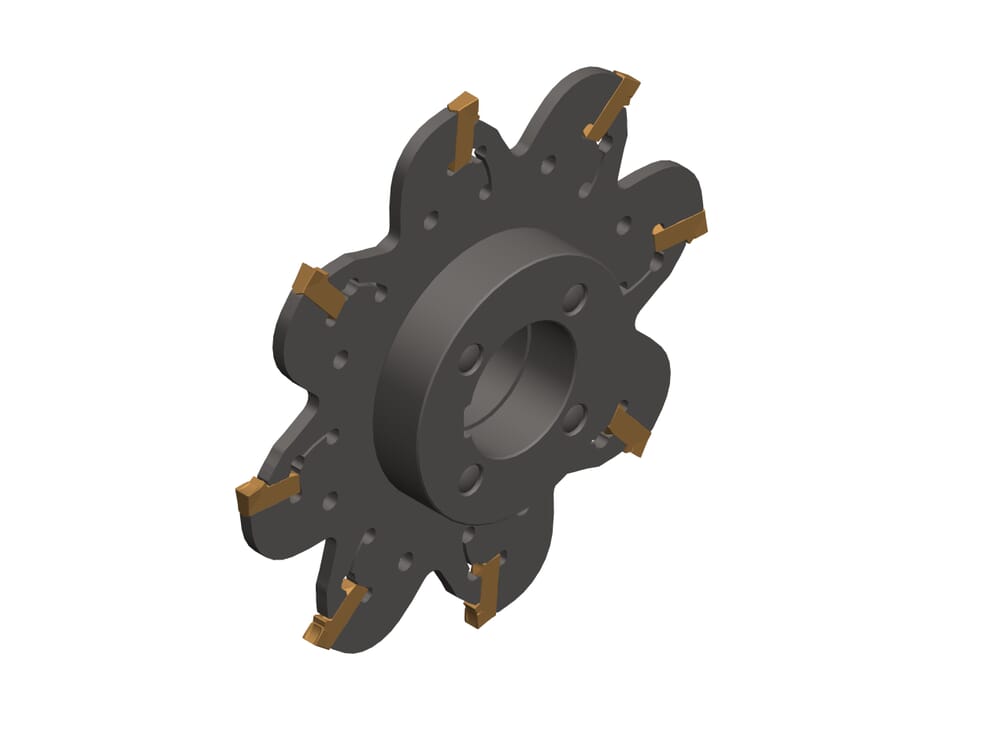

HORN Toolholder M101.0100.28.20 for Milling

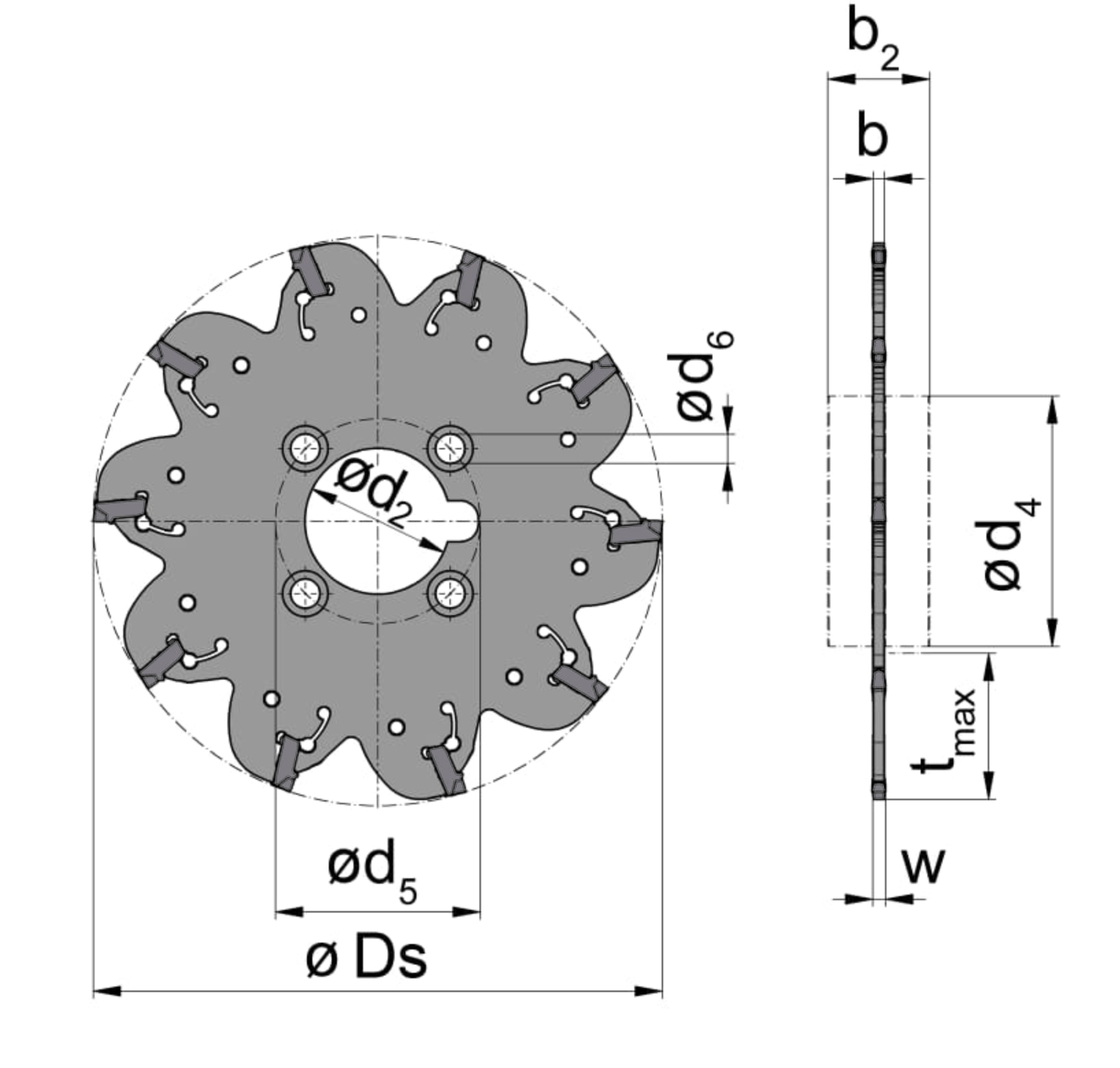

Maximum milling depth/ depth of groove (tmax)
30 mm
milling-body-wide-met
1.6 mm
Number of revolutions maximum (nmax)
5000 Min-1
Cutting width minimum (Schneidbreite)
2 mm
Diameter for through hole (d6)
4.25 mm
Diameter of driver ring (d4)
36 mm
Total width with drive rings (b2)
13.6 mm
Cutting diameter (Ds)
100 mm
Cutting width maximum (Schneidbreite)
2.3 mm
Plating seat size (Größe)
20
Mounting hole diameter (d2)
28 mm
Wide disc cutter without cutting insert (b)
1.6 mm
Katalog_CCTWS
10120
DIN_CCTWS
HORN-101200058N
ISO_CCTWS
HORN101200058N$$$$$
Number of teeth (Z)
9 St.
Bore diameter miller body (d5)
29 mm
