M328_ST12_01A-PICTO.TIF
M328_ST12_01A-PICTO.TIF M328ST1201A.TIF

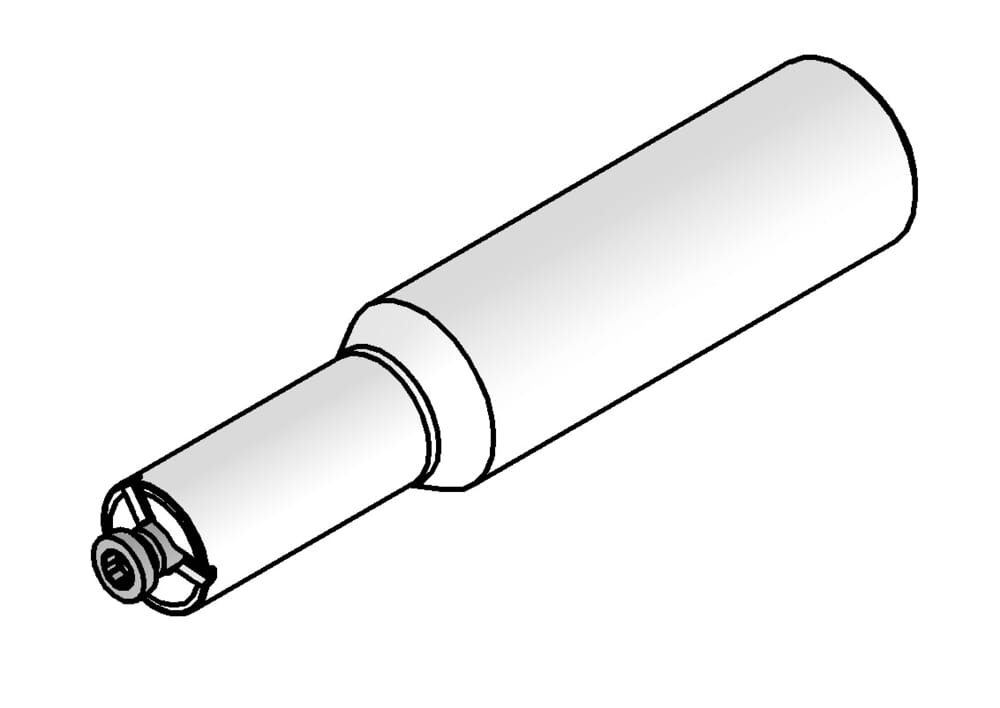

M328.ST12.01A

Toolholder

NUTFRAESEN.EPS SCHAFTFORM_HA_H6.EPS

Material number M328ST1201A

HORN Toolholder M328.ST12.01A for Milling

Technical instructions

Shank diameter (d)
12 mm
ISO_CCTWS
HORN328143$84R$$$$$
DIN_CCTWS
HORN32814384R
Katalog_CCTWS
328143R
DIN_CCTMS
ZYL01200105
ISO_CCTMS
ZYL01G1200h$06
Neck diameter (d1)
14 mm
Total length insert (l1)
70 mm
Form (Form)
A1
Downloads
M328_ST12_01A-DXF.DXF Download
M328_ST12_01A-STP.STP Download
M328_ST12_01A-ISO.XML Download
M328_ST12_01A-DIN.XML Download
Download all files
