M409.040.D32.6.04A

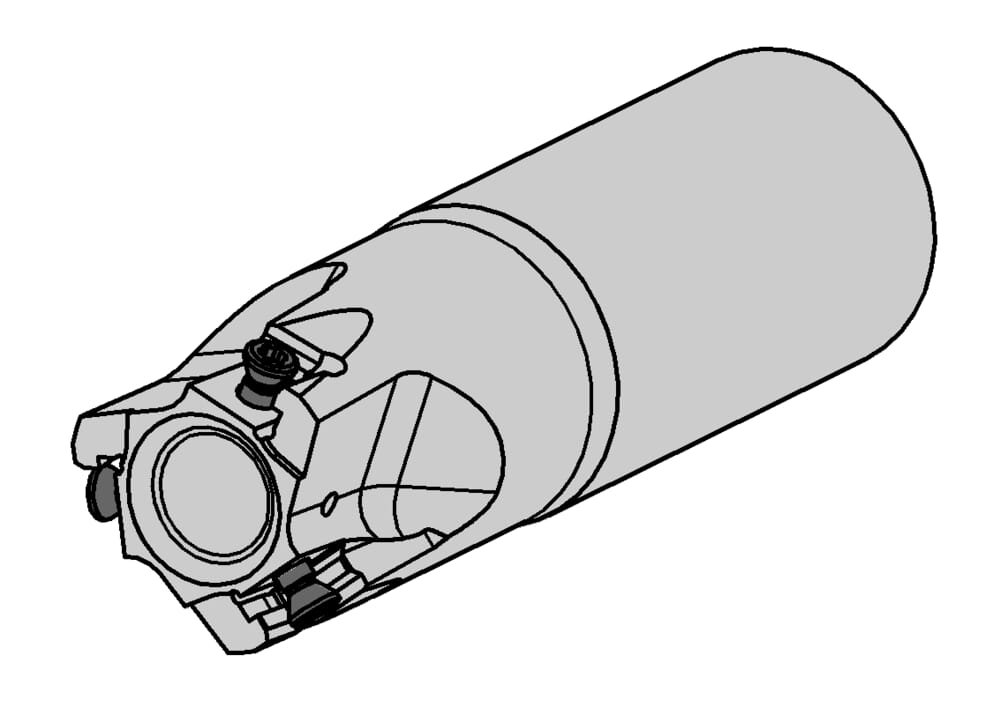

Milling cutter shank

Material number M409040D32604A

HORN Milling cutter shank M409.040.D32.6.04A for Milling

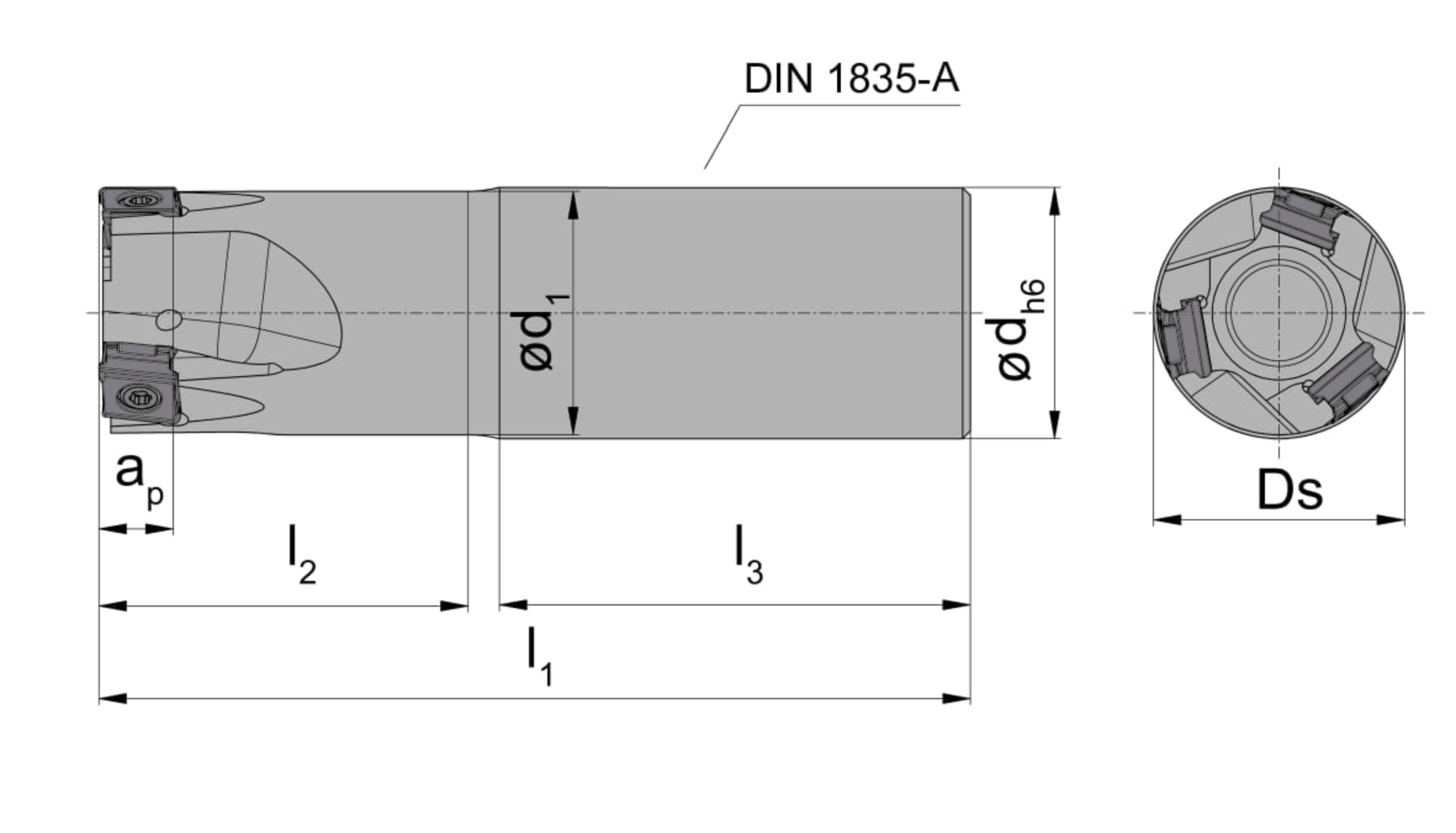

Neck diameter (d1)

39 mm

Number of revolutions maximum (nmax)

13900 Min-1

Tension length (l3)

60 mm

Form (Form)

Working length, Neck length, Extension length (l2)

47 mm

Total length insert (l1)

111 mm

Shank diameter (d)

32 mm

Cutting depth (ap)

9.3 mm

ISO_CCTMS

ZYL01G3200h$06

DIN_CCTMS

ZYL03200115

Katalog_CCTWS

40900R

DIN_CCTWS

HORN-409003R

ISO_CCTWS

HORN40900$$$3R$$$$$

Number of teeth (Z)

4 St.

Cutting diameter (Ds)

40 mm

Downloads
M409040D32604A_20240117_113403055.STP	Download
Download all files

Insert

S32T012000EG55
