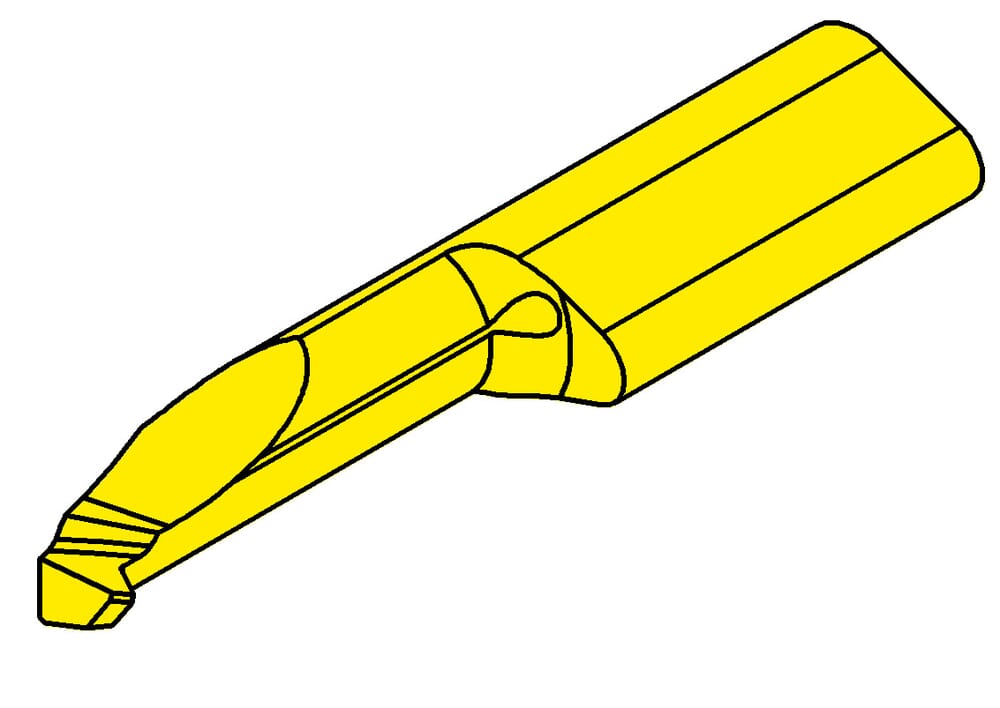

R105.0203.1.3 EG35
Insert
Material number R105020313EG35
HORN Insert R105.0203.1.3 EG35 for Gewinden
Neck diameter (d)
2.1 mm
Pitch (P)
0.35 mm
Smallest bore diameter (Dmin)
3 mm
Setting length (E)
0.3 mm
Cutting insert width (a)
2.7 mm
Setting range radial (f)
1.4 mm
Neck length (l2)
10 mm
Katalog_SSC
105123
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
Cutting insert total length (l5)
25 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| R105020313_20230113_233718633.STP | Download |
| R105020313.DXF | Download |
| Download all files | |
