R105.0205.2.3 TN35
insert
Material number R105020523TN35

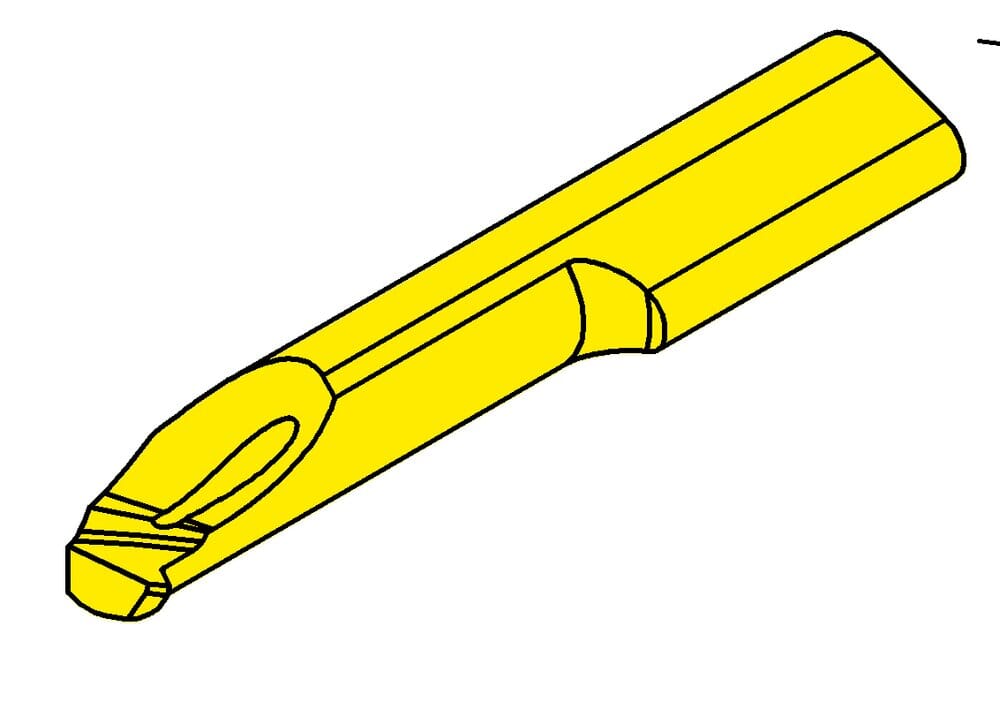

HORN insert R105.0205.2.3 TN35 for Gewinden
Setting range radial (f)
1.4 mm
Maximum pitch (Pmax)
0.5 mm
Pitch (P)
0.5 mm
Smallest bore diameter (Dmin)
3 mm
Setting length (E)
0.35 mm
Cutting insert width (a)
2.7 mm
Neck length (l2)
15 mm
Neck diameter (d)
2.1 mm
Katalog_SSC
105123
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
Cutting insert total length (l5)
30 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| R105_0205_2_3_TN35-DXF.DXF | Download |
| R105_0205_2_3_TN35-STP.STP | Download |
| R105_0205_2_3_TN35-ISO.XML | Download |
| R105_0205_2_3_TN35-DIN.XML | Download |
| Download all files | |
