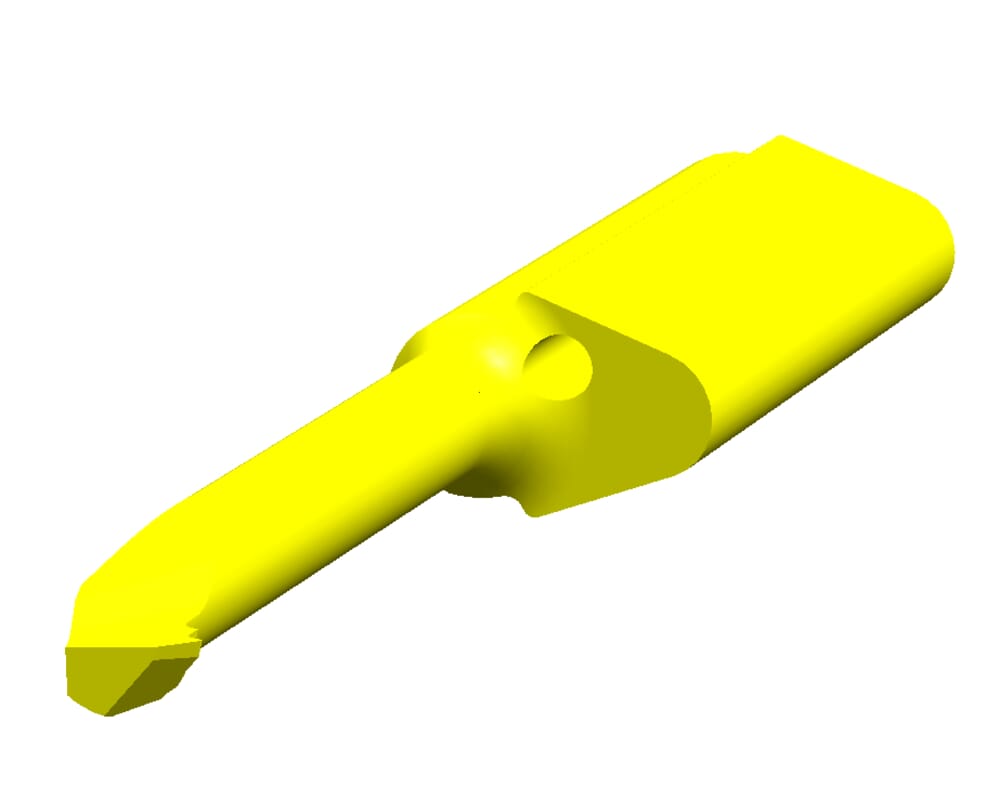

R105.VPM4.2.4 TH35
Insert
Material number R105VPM424TH35
HORN Insert R105.VPM4.2.4 TH35 for Gewinden
Pitch (P)
0.7
mm
Smallest bore diameter (Dmin)
3.2
mm
Setting length (E)
0.4
mm
Cutting insert width (a)
2.9
mm
Setting range radial (f)
1.5
mm
Neck diameter (d)
2.1
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
Width of blank (b)
6.4
mm
Cutting insert total length (l5)
30
mm
number-of-teeth
1
St.
Neck length (l2)
15
mm
| Downloads | |
|---|---|
| R105VPM424_20230114_023624186.STP | Download |
| R105VPM424_20210626_034627374.DXF | Download |
| Download all files | |
