R110010058_PICTO.TIF
R110010058_PICTO.TIF L110010058.TIF

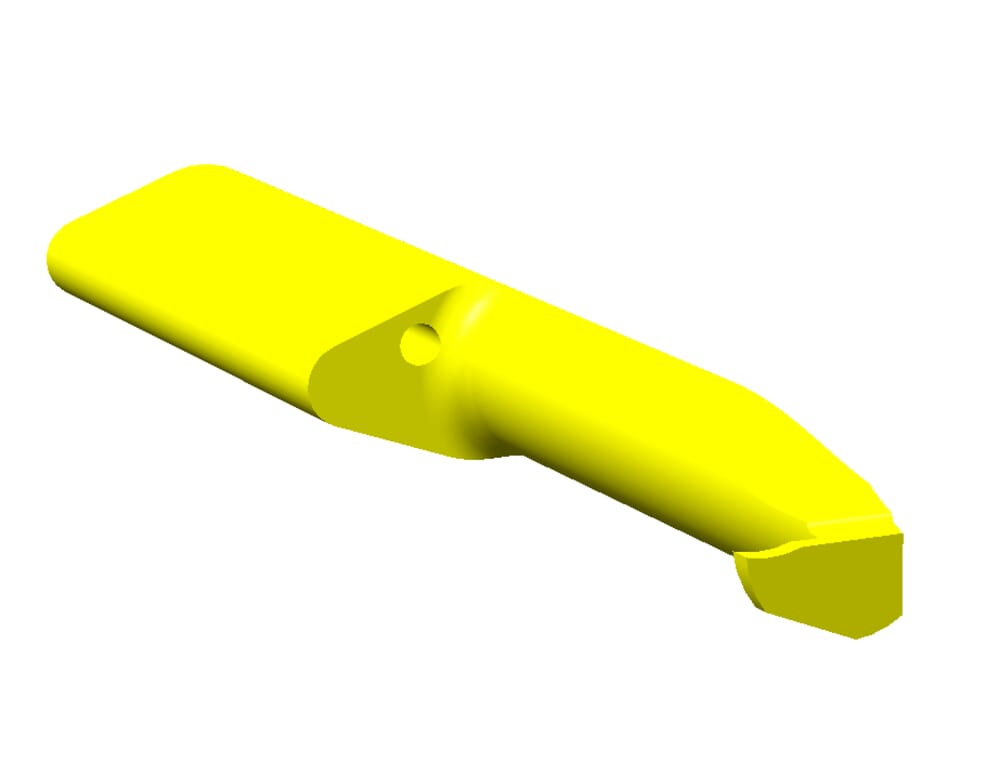

R110.0100.5.8 EG35

Insert

IK_GENERELL.EPS INNEN_EINSTECHEN.EPS

Material number R110010058EG35

HORN Insert R110.0100.5.8 EG35 for Turning

Technical instructions

Width of groove (w)
1 mm
Smallest bore diameter (Dmin)
8 mm
Total length (l5)
60 mm
Setting range radial (f)
4 mm
Neck diameter (d)
4.2 mm
Neck length (l2)
30 mm
Katalog_SSC
110260
ISO_SSC
HORN110260$95N$$$$$
Maximum depth of groove (tmax)
2.8 mm
Head size (a)
7.4 mm
Downloads
R110010058_20230114_012936709.STP Download
R110010058_20210628_182245220.DXF Download
Download all files
