R111.0009.18 EG55
Insert
Material number R111000918EG55

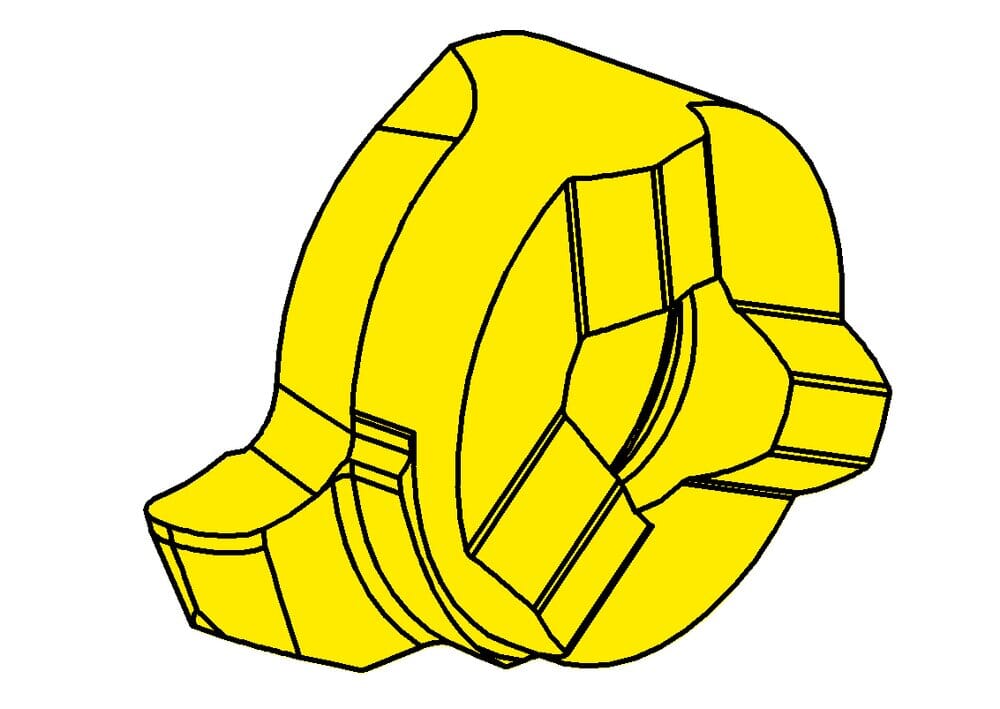

HORN Insert R111.0009.18 EG55 for Turning
ISO_SSC
HORN111080$84R$$$$$
Smallest bore diameter (Dmin)
11
mm
Radius, full-radius (r)
0.9
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Cutting insert thickness, setting length complete (s)
3.95
mm
Maximum milling depth/ depth of groove (tmax)
2.3
mm
Width of groove (w)
1.8
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
depth-of-groove-max-met
2.3
mm
head-size-met
10.7
mm
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
13.4
mm
| Downloads | |
|---|---|
| R111000918_20230113_202454635.STP | Download |
| R111000918_20210625_204857800.DXF | Download |
| Download all files | |
