R111.0080.00 TH35
insert
Material number R111008000TH35

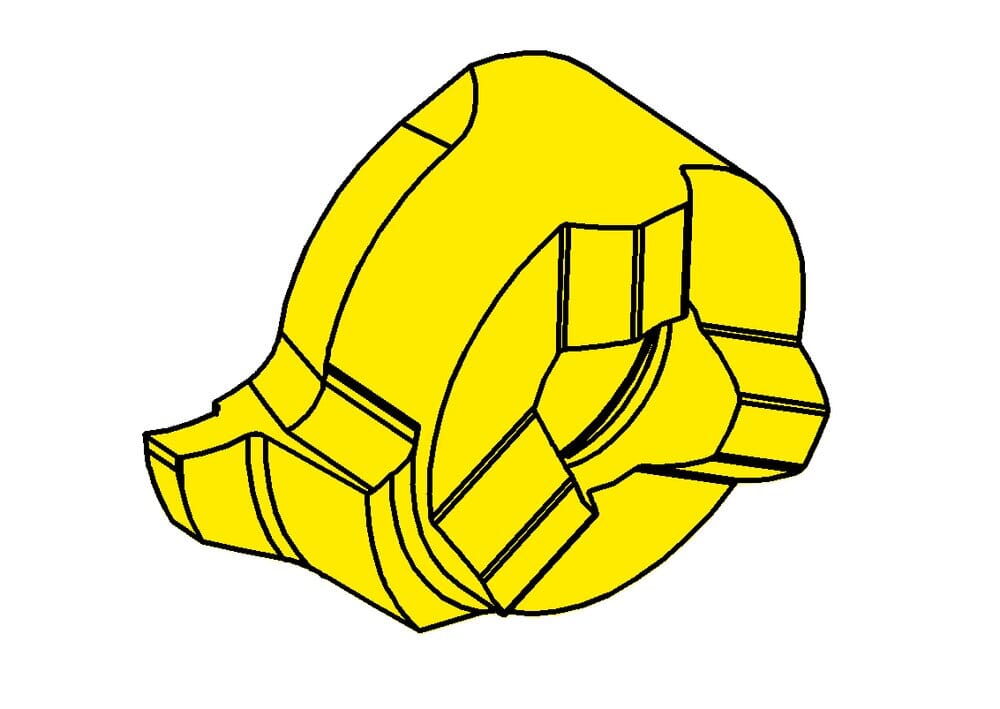

HORN insert R111.0080.00 TH35 for Turning
ISO_SSC
HORN111080$84R$$$$$
Smallest bore diameter (Dmin)
11
mm
cutting-insert-height-met
4.15
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.95
mm
Cutting insert thickness, setting length complete (s)
4.15
mm
Nominal range (Nw)
0.8
mm
Maximum milling depth/ depth of groove (tmax)
1.3
mm
Width of groove (w)
0.84
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
distance-dimension-cutting-edge-met
3.95
mm
depth-of-groove-max-met
1.3
mm
head-size-met
10.7
mm
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
13.4
mm
| Downloads | |
|---|---|
| R111008000_20230113_202547838.STP | Download |
| R111008000.DXF | Download |
| Download all files | |
