R111.0200.02 TH35
insert
Material number R111020002TH35

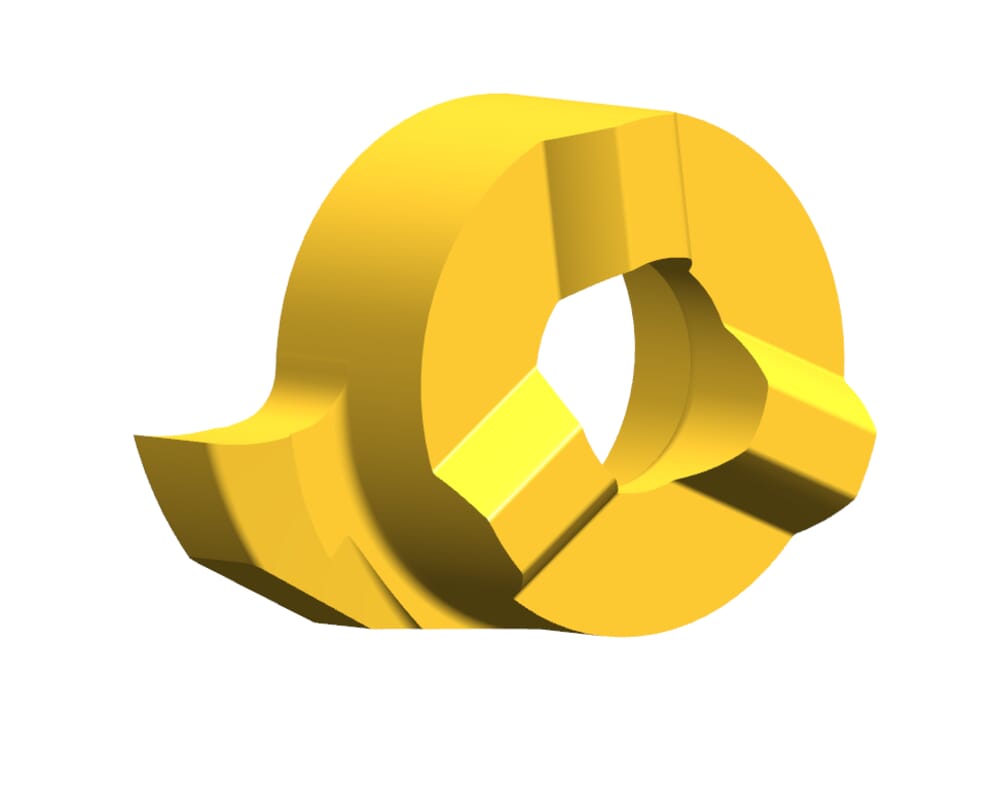

HORN insert R111.0200.02 TH35 for Turning
ISO_SSC
HORN111080$84R$$$$$
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Corner radius (r)
0.2
mm
Tooth diameter, head diameter (d)
8
mm
Setting range radial (f)
6.7
mm
Width of groove (w)
2
mm
Katalog_SSC
111080R
DIN_SSC
HORN-11108084R
Maximum depth of groove (tmax)
2.3
mm
Head size (a)
10.7
mm
| Downloads | |
|---|---|
| R111020002_20210625_205841115.DXF | Download |
| R111_0200_02_20171121_215712605.STP | Download |
| Download all files | |
