R111.4767.02 TN35

Inserts

Material number R111476702TN35

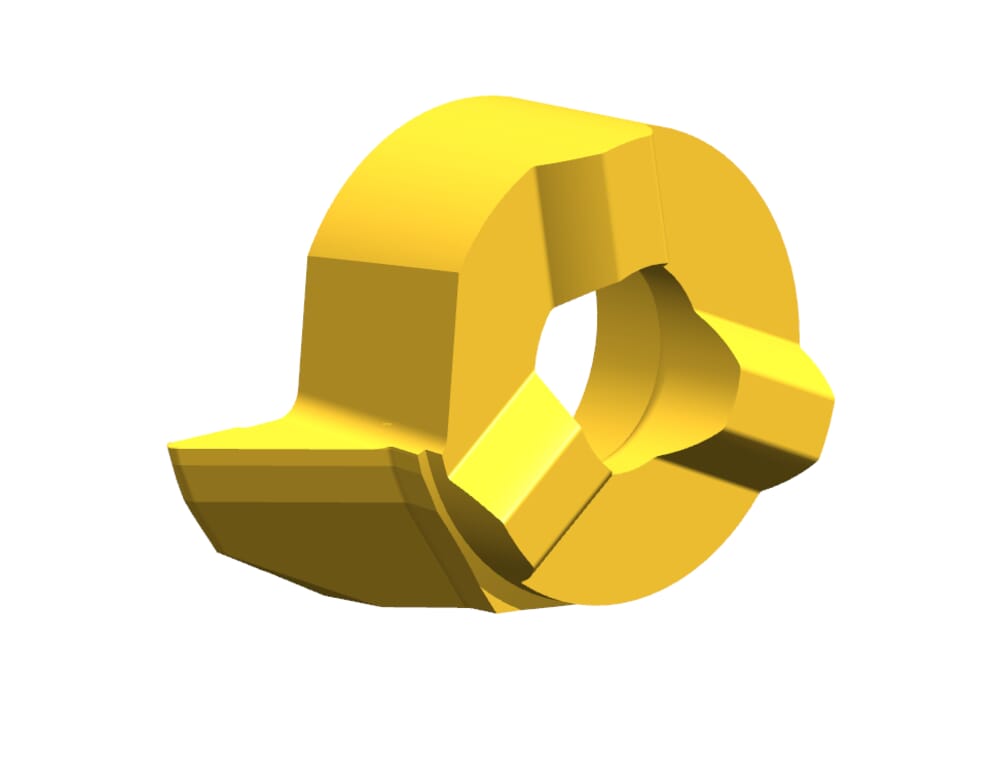

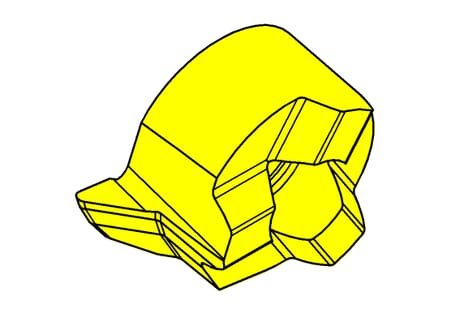

HORN Inserts R111.4767.02 TN35 for Turning

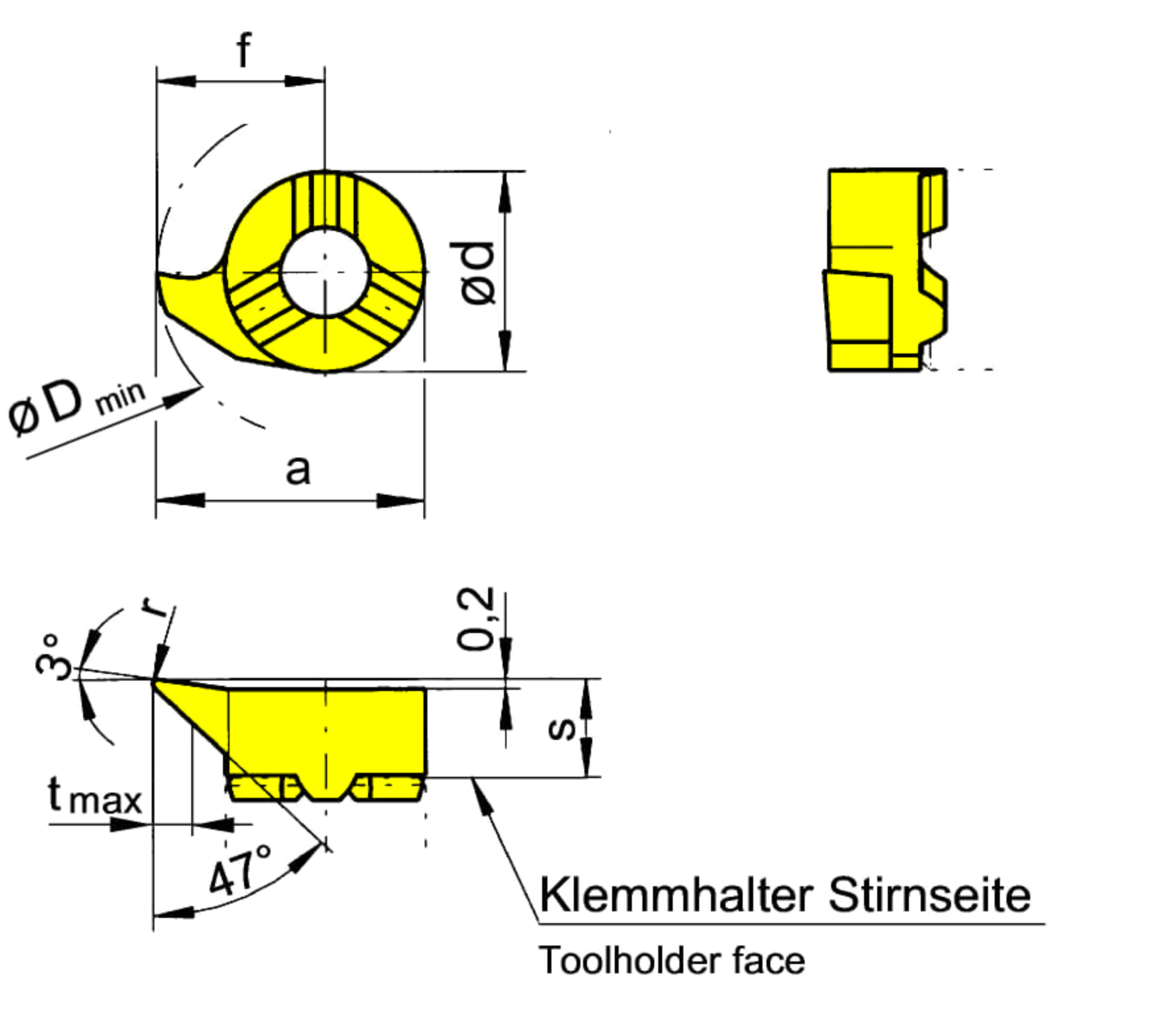

Technical instructions

Top radius (r)

0.2 mm

Head size (a)

10.7 mm

Maximum depth of groove (tmax)

2.3 mm

ISO_SSC

HORN111080$84R$$$$$

Katalog_SSC

111080R

Setting range radial (f)

6.7 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.95 mm

Smallest bore diameter (Dmin)

11 mm

Downloads
R111476702_20230113_213020220.STP	Download
R111476702_20210628_193655400.DXF	Download
Download all files
