R245.0020.04
Toolholders
Material number R245002004

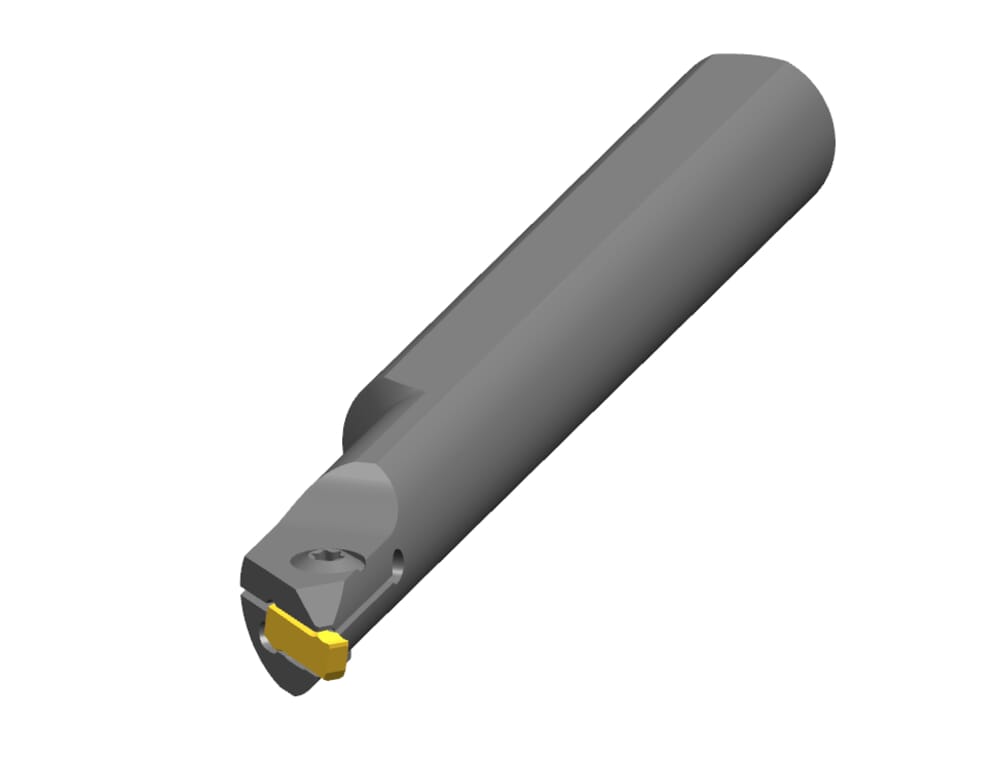

HORN Toolholders R245.0020.04 for Turning
Extension length (l2)
60.99 mm
Plating seat size (Größe)
4
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002305
Katalog_CCTWS
21704
DIN_CCTWS
HORN-217040008N
ISO_CCTWS
HORN217040008N$$$$$
Adjustment dimension (f)
12 mm
Dimension location face insert to face holder (s1)
5.2 mm
Head length top (including cutting edge) (l3)
36.17 mm
Clamping range maximum (Spannbereich)
5.3 mm
Clamping range minimum (Spannbereich)
3.7 mm
Peak height (h1)
9 mm
Clamping, shank diameter (d)
20
Minimum drilling diameter (Dmin)
20 mm
Head diameter (d1)
17.2 mm
Shank height (h)
18 mm
Total length (including cutting insert) (l1)
180 mm
