RA105.1020.2.2 EG35
Insert
Material number RA105102022EG35

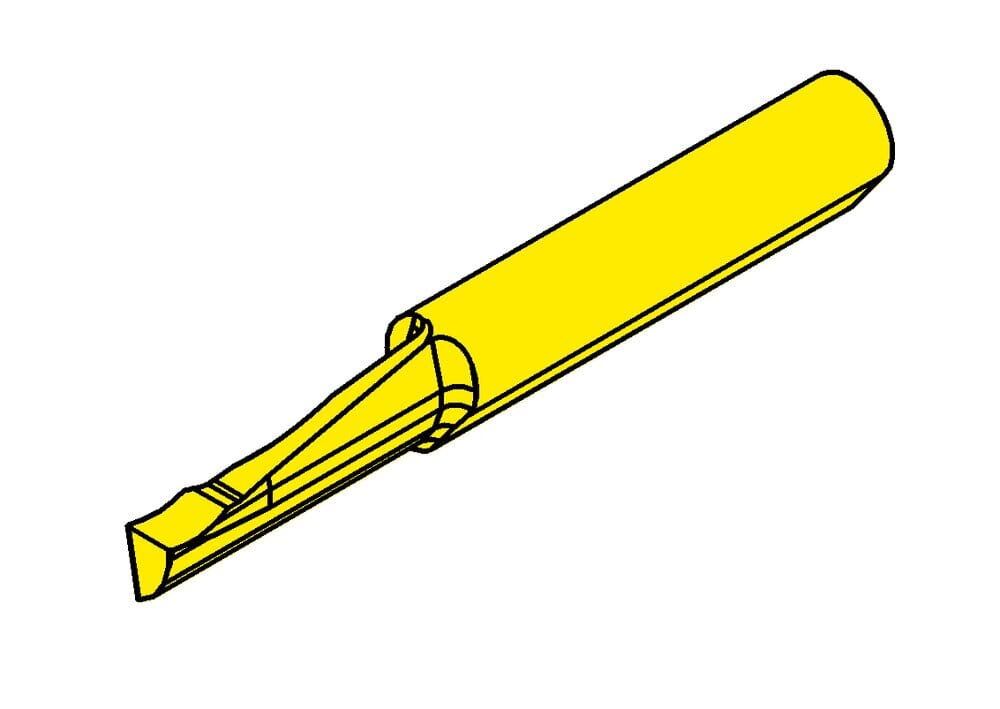

HORN Insert RA105.1020.2.2 EG35 for Turning
Adjustment dimension cutting center (f)
1.4 mm
Maximum depth of groove (tmax a)
15 mm
Maximum starting outside diameter (Da max)
44 mm
Smallest axial bore diameter (Da min)
10 mm
ISO_SSC
HORN105225$95N$$$$$
Katalog_SSC
105225
Width of groove (w)
2 mm
Corner radius (r)
0.1 mm
Total length (l5)
40 mm
| Downloads | |
|---|---|
| RA105_1020_2_2_EG35-DXF.DXF | Download |
| RA105_1020_2_2_EG35-STP.STP | Download |
| RA105_1020_2_2_EG35-ISO.XML | Download |
| RA105_1020_2_2_EG35-DIN.XML | Download |
| Download all files | |
